B&G H5000 Graphic Display - 000-11542-001

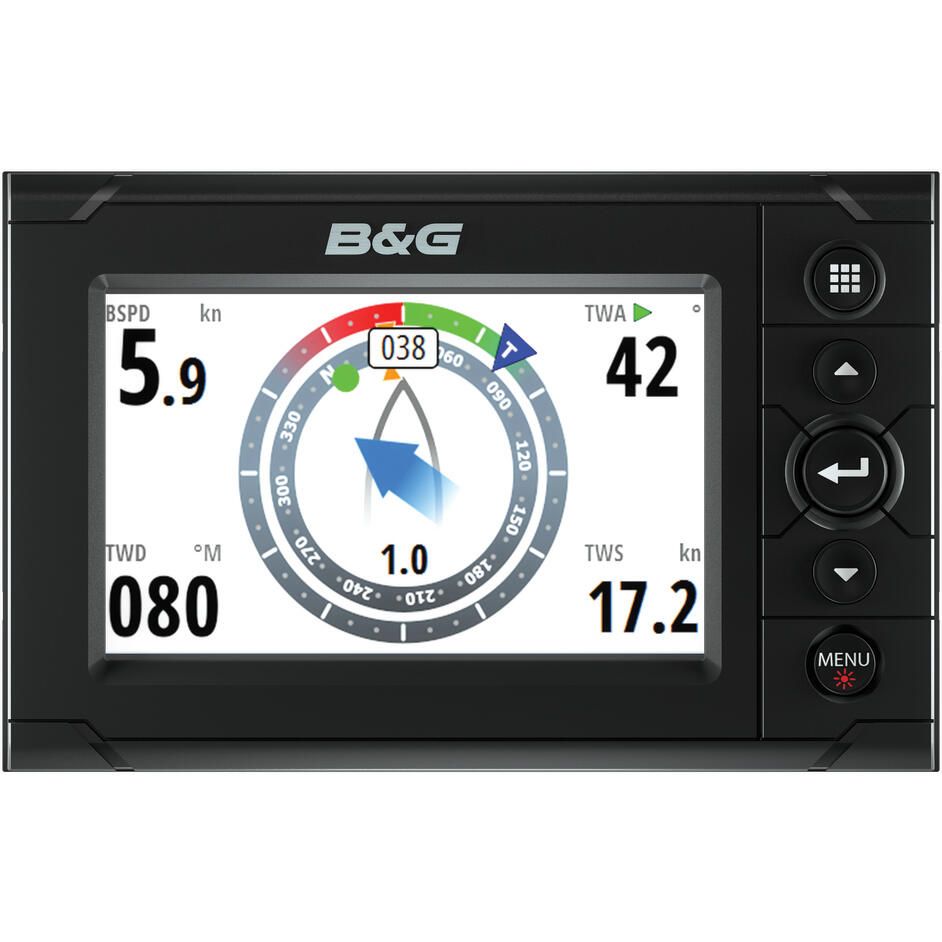

B&G's H5000 Graphic Display is a 5-inch, sunlight-viewable colour screen with a highly intuitive user interface. View your sailing data in sharp digital detail or graphical form with impressive 4Hz update rate. Use the Graphic Display as the main visual information hub of your H5000 system or as an alternative to a Race Display whether on deck, from a distance or in short-range applications at nav stations, in cabins and on pedestal mounts. Uniquely designed for sailing, this marine monitor is packed with dedicated features such as time plot, wind plot smart line, SailSteer and MOB laylines.

Features:

• High-Contrast Optically Bonded LCD
• 5" sunlight viewable, colour graphic, wide-screen display
• Straight-forward, context-sensitive, user interface
• Unique sailing features including SailSteer and Start Line
• Robust, lightweight ABS construction
• Core H5000 setup and calibration control

Specifications:

• Display Size: 5" widescreen
• Resolution: 480 x 272
• Backlighting: LED
• Operating Voltage: 12V DC nominal (powered from network)
• Display Type: Colour TFT LCD
• Display Backlighting: Enhanced LED
• Backlighting Levels: TBC
• Waterproof Standard/Rating: IP67

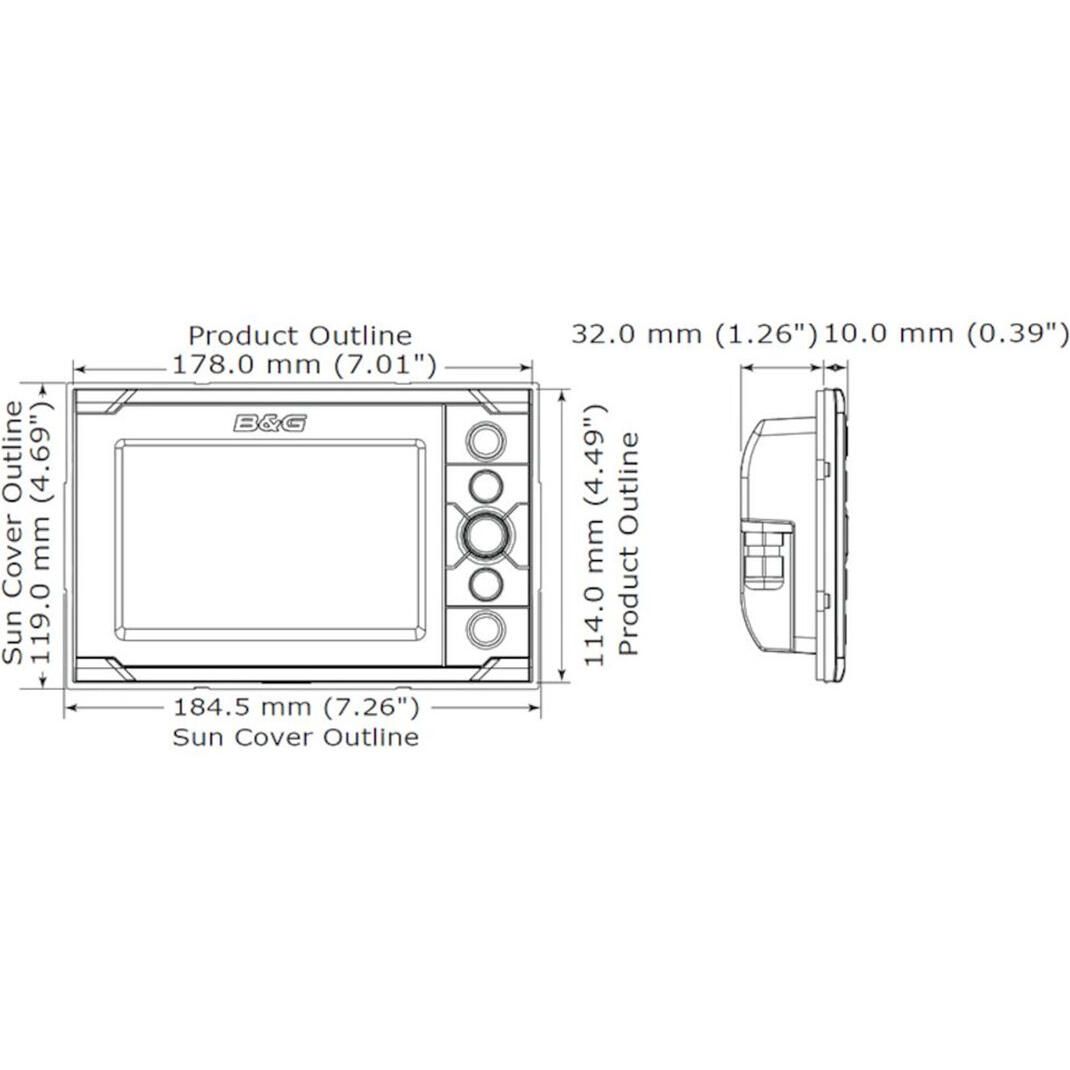

• Product Width: 178 mm
• Product Depth: 8 mm (visible front), 32 mm (rear including all cables)
• Product Height: 114 mm
• Power Supply (Supply Voltage): 12V DC nominal (powered from network)
• Power Consumption: 1.9W Typical, 2.3W Max
• Network Load: 4 LEN
• Network: 1x Micro-C connector on flying lead

Included:

• H5000 graphic display
• N2K-T-RD Network T-Connector
