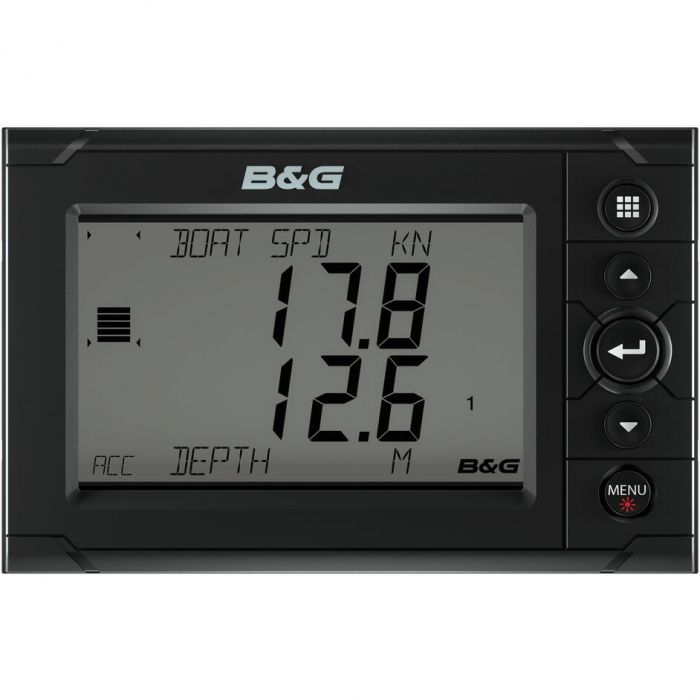

B&G H5000 Race Display - 000-11543-001

The H5000 Race Display features a large, clear, 5-inch screen, designed for viewing essential data at a glance. A dedicated page key allows quick switching between stored pages which each display 2 data values, updated at rates of up to 10Hz, alongside a unique bar graph providing immediate visual indication of performance targets, countdown timer status and more.

The Race Display is straightforward to install either alongside other H5000 system components, as a display for the highly accurate H5000 CPU data, or as part of a new or existing NMEA 2000® compatible network. With no external metal parts, the durable H5000 Race Display is completely corrosion resistant. It is glass bonded for zero condensation and enhanced contrast.

Features:

• Bright, 5-inch bonded LCD display: The transflective H5000 Race Display is highly visible both in bright sunlight and at night
• Visual Target Indicator: The Race Display's unique bar graph gives you an instant visual on target data, start time and more
• Low Power: Incredibly low power draw – perfect for offshore racing and blue water cruising
• Tough design - built to last: No external metal parts and completely corrosion resistant, providing you with the peace of mind it can weather the elements – whether the spray of the race or the heat of the sun
• Seamless networking: The H5000 Race Display is NMEA 2000® compatible for ease of integration into your existing network

Specifications:

• Display Size: 5" widescreen
• Resolution: N/A (Custom Segmented data display)
• Backlighting: LED
• Operating Voltage: 12V DC nominal (powered from network)
• Display Type: Custom Segmented data display
• Display Backlighting: LED
• Backlighting Levels: 10 levels
• Waterproof Standard/Rating: IP67
• Width: 178 mm
• Depth: 8 mm (visible front), 32 mm (rear including all cables)
• Height: 114 mm
• Power Supply (Supply Voltage): 12V DC nominal (powered from network)
• Power Consumption: 0.6W Typical, 1.0W Max
• Network Load: 2 LEN
• Network: 1x Micro-C connector on flying lead
