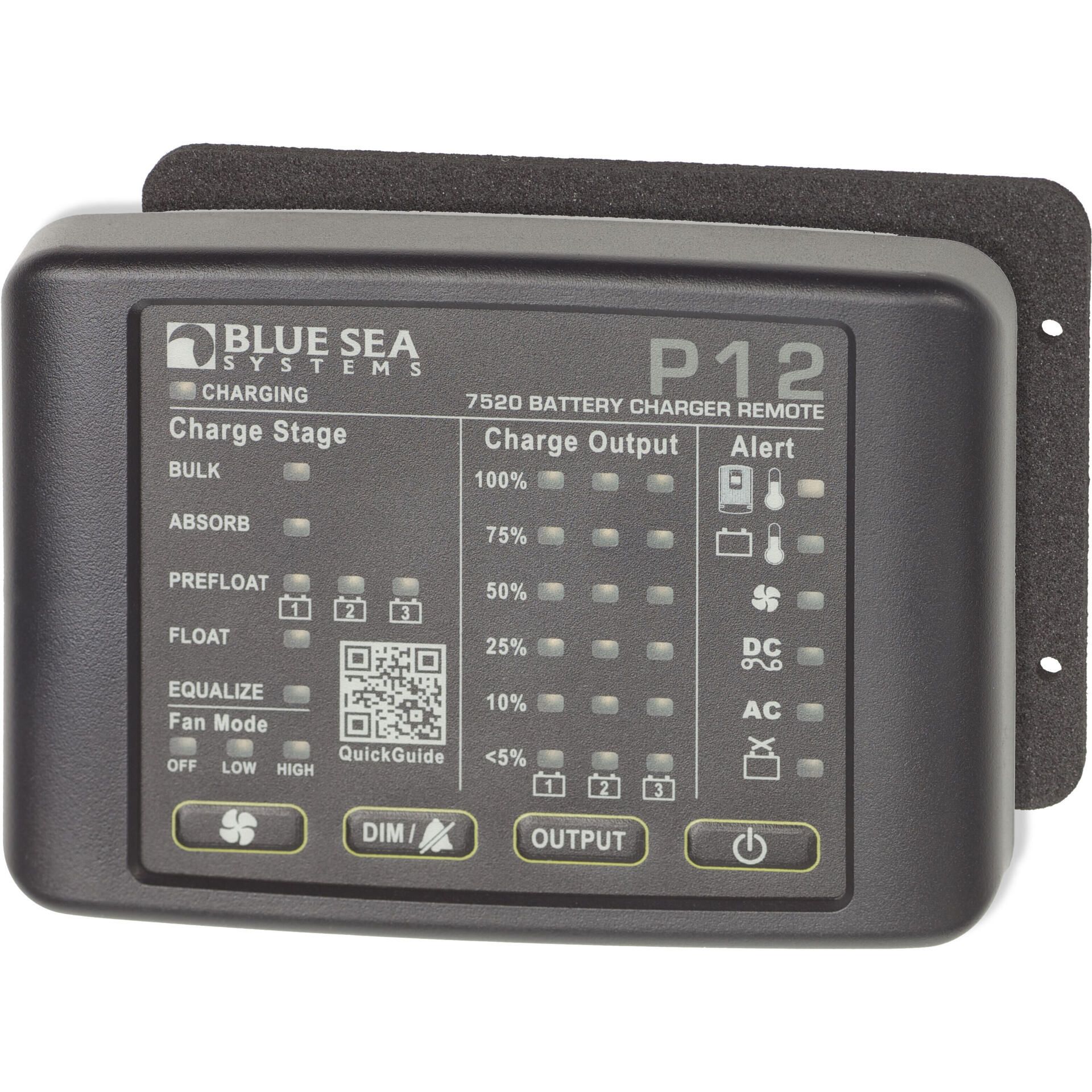

Blue Sea Systems P12 Series LED Battery Charger Remote Control - 7520

The Blue Sea Systems P12 Series Battery Charger Remote Control is designed to be used with the P12 series battery chargers. This will allow you to monitor and control what the battery charger is doing and the state of the battery banks.

Features:

• LED Indicators:
  • Charging LED: Quick check for green light confirms charging
  • Charge Stage: Displays charging stage
  • Equalize LED: Indicates the charger is currently in equalization mode
  • Fan Mode: Indicates charger's internal fan mode
  • Charge Output: Displays the percentage of output current for each battery
    • Will also indicate maximum output setting when maximum output is adjusted to accommodate for AC source limitations
  • Alert: Icon LEDs provide warning and alert status for quick diagnostics
• Four Control Buttons
  • Fan: User adjustable settings
  • Dim/ Alarm: Provides adjustment to brightness of LEDs on display as well as Silence function for alarms
  • Output: User adjustable charger output when AC source limitations exist that require lowering the AC current draw

Specifications:

• Minimum Operating Temperature: -20° C
• Maximum Operating Temperature: 60° C
• Minimum Storage Temperature: -30° C
• Maximum Storage Temperature: 70° C
• Communications Cable: Cat5e
• Communications Protocol: Proprietary
• Maximum Cable Length: 150 ft (45.72 m)
• Operating Current: <300mA sourced from charger
• Height" 3.01 in (76.45 mm)
• Width: 4.15 in (105.41 mm)
• Depth: .95 in (24.13 mm)
