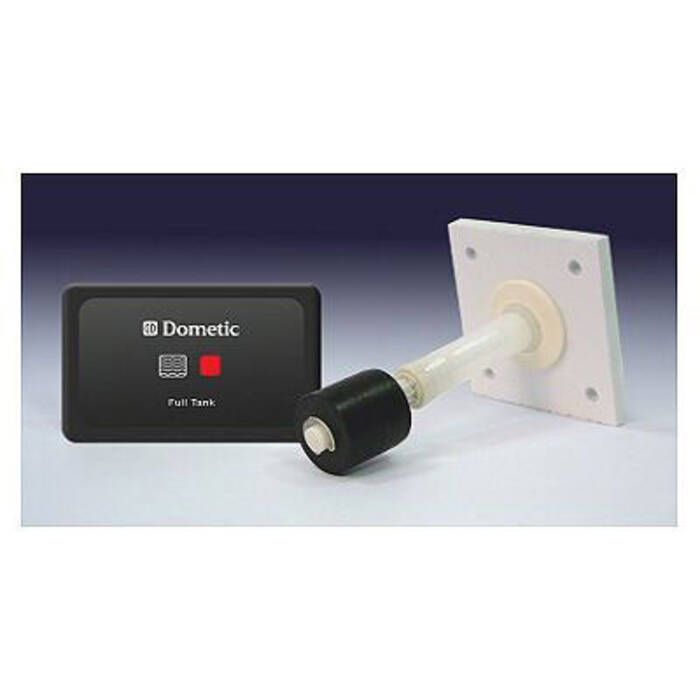

Dometic DTM01 Holding Tank Monitor - 313002311

Dometic DTM01 Holding Tank Monitor.

Features:

• Single-level tank monitor system indicates when waste holding tank is almost full
• As level of holding tank contents rises, float switch inside tank is pushed upward and activates "Full Tank" light on indicator panel
• When "Full Tank" light is activated, the operation of any plumbing fixture connected to the holding tank should stop until tank is emptied
• Level probe assembly is adjustable to desired level indication height and installs on virtually any rigid tank material

Specifications:

• Nominal Voltage: 12/24V DC
• Current Draw: 16 mA @ 12V DC (requires 0.5A fuse)
• Cutout: 1" Dia
• Dimensions (monitor panel): 3 1/4" x 2"
• Connection:
  • Panel: 12" wire pigtail
  • Probe: 24" wire pigtail

Note: Probe to panel connection requires additional 18AWG stranded cable (sold separately).
