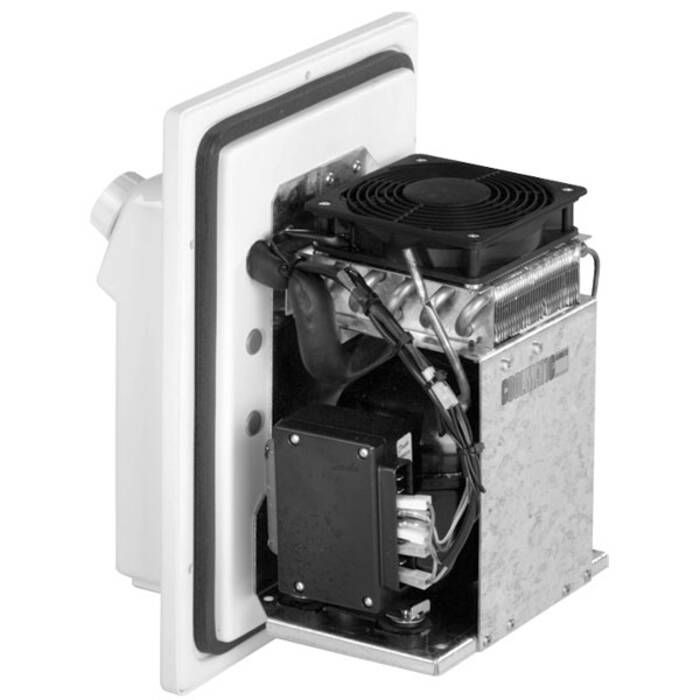

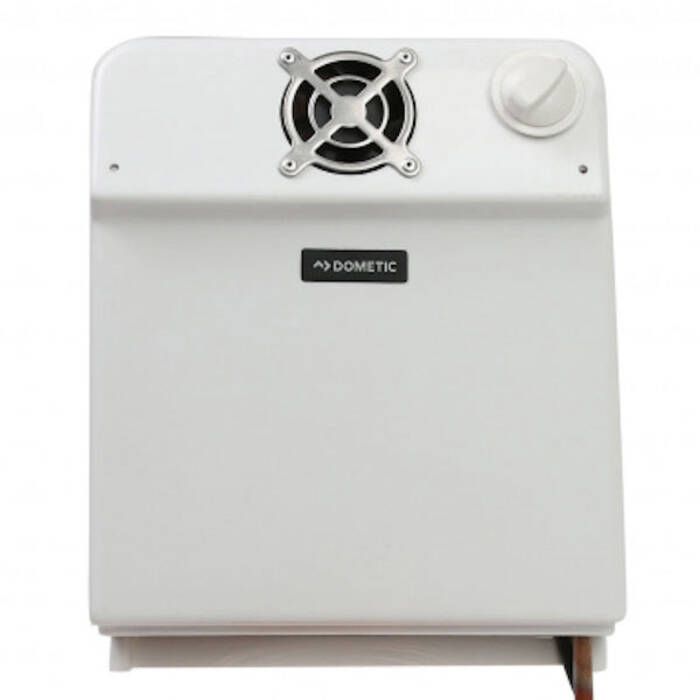

Dometic VD-15 CoolMatic 80 Series Air Circulating Evaporating Unit - 9105306612

Dometic VD-15 CoolMatic 80 Series Air Circulating Evaporating Unit is specifically designed to service the rigors of the harsh marine environment and provides exceptional performance in hot and humid conditions, erratic or low voltage, and continuous use.

Features:

• Compact, easy-to-install
• Powered by a Danfoss / SeCOP compressors
• Uses the BD35F and offers (3) different configurations for installation flexibility and tailor-made cooling applications
• Designed to work in warmer waters, erratic or low voltage conditions, and continuous use
• For use with small to medium refrigerators or small freezer capacities
• Corrosion-resistant stainless-steel mounting plate
• Includes a choice of evaporator types to match the performance of the compressor
• Applications up to 8.8 cu. ft. (249 liters) of refrigeration and up to 2.5 cu. ft. (65 liters) of deep freezing
• Compressors are equipped with a power-regulated SeCOP BD35F compressor
• Only environmentally-safe R-134A refrigerant is used

Specifications:

• Capacity: Refrigeration: 7.0 cu. ft. (198 liters)
• Configuration: Circulating air
• Power: N/A
• Amp Draw: N/A
• Dimensions: 8.6 " W x 10.8 " H x 2.6 " D (218 x 274 x 66 mm)

Compatible Cooling / Condensing Units:

• CoolMatic CU-84:
  • Capacity:
    • Refrigeration: 8.83 cu. ft. (250 liters)
    • Deep Freezer: 2.47 cu. ft. (70 liters)
  • Voltage: 12 / 24V DC
  • Draw: Varies
  • Configuration: Horizontal Platform
  • Dimensions: 15.2" W x 6.1" H x 5.1" D (386 x 155 x 129 mm)
• CoolMatic CU-85
  • Capacity:
    • Refrigeration: 8.83 cu. ft. (250 liters)
    • Deep Freezer: 2.47 cu. ft. (70 liters)
  • Voltage: 12 / 24V DC
  • Draw: Varies
  • Configuration: Square Layout
  • Dimensions: 8.7" W x 6.1" H x 8.7" D (220 x 155 x 220 mm)
• CoolMatic CU-86
  • Capacity:
    • Refrigeration: 8.83 cu. ft. (250 liters)
    • Deep Freezer: 2.47 cu. ft. (70 liters)
  • Voltage: 12 / 24V DC
  • Draw: Varies
  • Configuration: Vertical or Wall Mount
  • Dimensions: 8.7" 9.0" H x 7.6" D (220 x 228 x 193 mm)
• CoolMatic CU-87
  • Capacity:
    • Refrigeration: 8.83 cu. ft. (250 liters)
    • Deep Freezer: 2.47 cu. ft. (70 liters)
  • Voltage: 12 / 24V DC
  • Draw: Varies
  • Configuration: Suitable for Floor Mounting
  • Dimensions: 17.3" W x 8.9" H x 7.9" D (440 x 225 x 200 mm)

CoolMatic Cooling Kits Product Information
