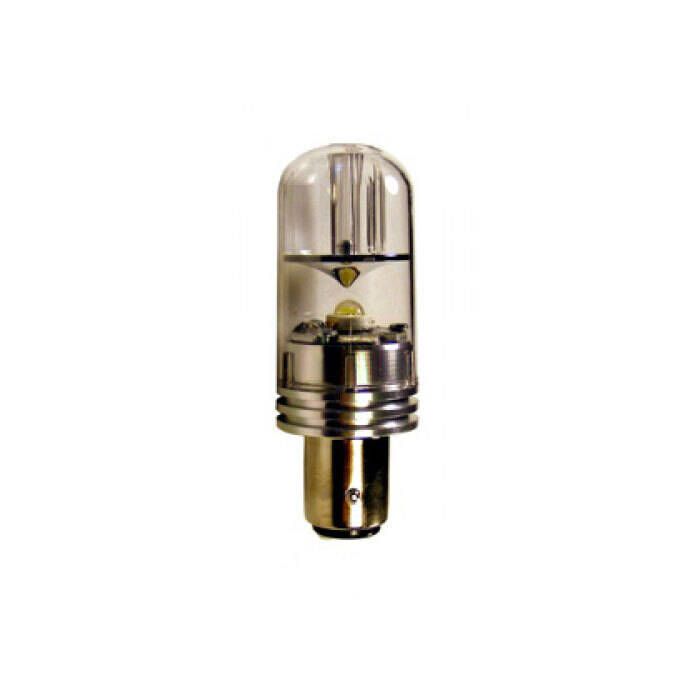

Dr. LED Green Polar Star 40 Navigation LED Replacement Bulb - 8001771

Dr. LED's Green Polar Star 40 Navigation LED provides 2 NM of visibility, satisfying all arc requirements set fourth by the USCG for vessels less than 165 feet in length.

Features:

• 2 NM visibility 15 mm bayonet-base green LED replacement bulb for starboard navigation lights
• Replaces existing incandescent bulbs with double-contact, indexed (offset side pins) bayonet-style sockets
• Bulb satisfies all brightness, distance (2 NM), and arc requirements set forth by the USCG for vessels less than 165 ft. in length
• Low current draw helps reduce energy consumption on your boat
• Very low power consumption approximately 1W (non-polarized connection)
• Internal circuitry provides constant current draw regardless of voltage fluctuations from source
• Long service life, shockproof and ultra-rugged with no filament to burn out or break

Specifications:

• Base / Socket: Double-contact bayonet 15 mm indexed BAY15D
• LED Light Color: Green
• Nominal Voltage: 12 / 24V DC
• Power Consumption: 1W
• Current Draw: 0.1 Amp @ 12V DC
• Regulatory: 2 NM USCG COLREG 1972 ABYC A-16 Certified

Note: Green LED bulb intended for use behind green colored lens

Only corresponding colored LED bulbs should be used in navigation lights with colored lenses.

Dr. LED Conversion Guide (1.55 MB)
