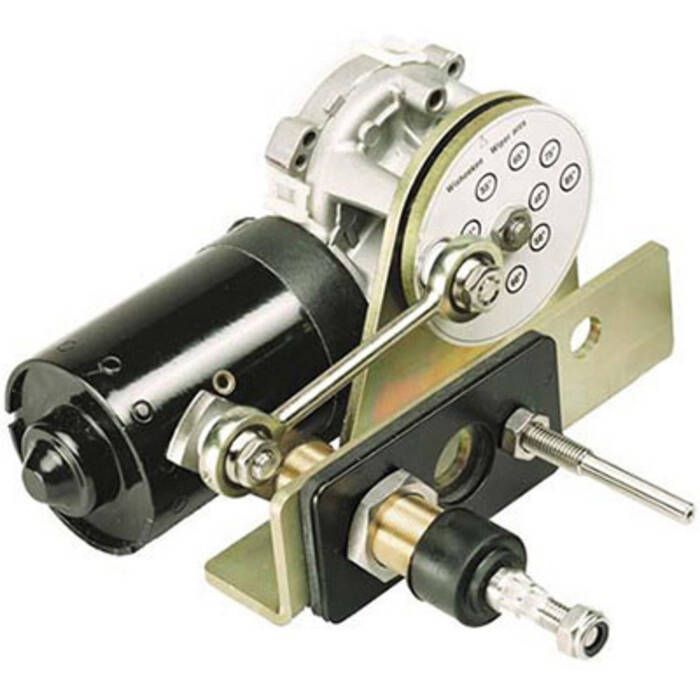

Exalto 223BD Pantograph Windshield Wiper Motor
$577.42 - $823.82
Exalto 223BD Pantograph Windshield Wiper Motor Item # 865438
Description
The Exalto Windshield Wiper Motor is a powerful 2-speed wiper motor that drives pantograph wiper.
Features:
- Motor designed and built to withstand the toughest conditions at sea
- Easily adjustable sweep angle 40° to 90°
- Dynamic parking, changeable to port or starboard
- Stainless steel, tapered driveshaft and components with durable galvanized steel bracket
- Optional motor cover available (not included)
- Easy installation and wiring
Specifications:
- Max Arm Length: 29 1/2" (750 mm)
- Max Blade Length: 29 1/2" (750 mm)
- Adjustable Sweep Angle: 40 deg. - 90deg. in 5 deg. increments
- Sweeps per Minute: 38 (low) / 59 (high)
- Mount: Bulkhead
- Torque: 23 Nm
- Voltage: 12/24V DC
- Rated Amp Draw: 3A
- Fuse: 6A
Part Numbers for Exalto 223BD Pantograph Windshield Wiper Motor
| PRODUCT OPTION | ITEM # | MFR. PRODUCT # | AVAILABILITY |
| 12V 3/4" 90 deg. | 865439 | EXA2165.30 | In Stock: Leaves Warehouse: Same Day |
| 12V 1 3/8" 90 deg. | 865440 | EXA2165.32 | In Stock: Leaves Warehouse: Same Day |
| 12V 2 1/8" 90 deg. | 865441 | EXA2165.35 | In Stock: Leaves Warehouse: Same Day |
| 24V 3/4" 90 deg. | 865442 | EXA2166.30 | In Stock: Leaves Warehouse: 3 to 5 days |
| 24V 1 3/8" 90 deg. | 865443 | EXA2166.32 | In Stock: Leaves Warehouse: 3 to 5 days |
| 24V 2 1/8" 90 deg. | 865444 | EXA2166.35 | In Stock: Leaves Warehouse: Same Day |
| 12V 3/4" 60 deg. | 1633830 | EXA2165.30-60 | In Stock: Leaves Warehouse: 3 to 5 days |
| 12V 1 3/8" 70 deg. | 1633831 | EXA2165.32-70 | In Stock: Leaves Warehouse: 3 to 5 days |
| 12V 1 3/8" 80 deg. | 1633832 | EXA2165.32-80 | In Stock: Leaves Warehouse: 3 to 5 days |
