Forespar Nova Lift - 153311

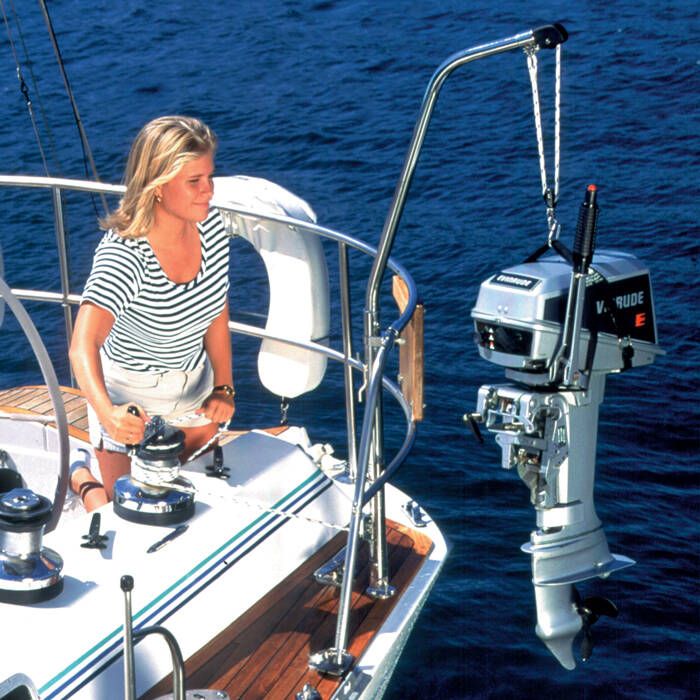

Designed specifically to handle the task of loading and unloading heavy stores and equipment from boats, the Nova Lift can be easily installed on almost any sailboat and works in conjunction with your existing winch. You can now lift a 15 hp outboard easily and safely with far less risk to the topsides, even if performing the task singlehanded. No longer risk overnight loss of your valuable outboard in an unsavory anchorage because it was too much of a struggle to haul aboard that night.

Features:

• Lift and lower heavy and awkward equipment with ease, including outboard motors, dive equipment, batteries, fuel & water jugs, even pets - the list of uses is endless
• Complements all man overboard recovery systems for emergencies
• Unique design allows the arm to be installed and ready for use in a matter of seconds
• Patented self-feeding tube allows line to be quickly rigged
• No messy block and tackle system
• Internally run load line allows the arm to be easily rotated 360 degrees under full load
• Robust, versatile stainless steel rail clamps and deck mounting hardware provide a simple, secure installation on virtually all vessels
• Electro polished stainless steel, quality sheaves, special cast end fitting, machined bushing and guides
• Lower mounting tube that will accommodate 30" height rails
  • Vessels with rails higher than 30" will require the use of a deck pad (not included) to raise the installation to the proper height
• Using a Harken 32 Two-speed winch (not included) with a 10" handle (not included) will require only 13 lbs of winch handle pressure to lift 200 lbs

Specifications:

• Material: Electro polished 304 stainless steel
• Max. working load: 220 lbs
• Rotation: 360
• Mounting hardware: Not included

In the Box:

• All rail and deck mounting hardware
• 30 feet of 3/8" Sta Set line
• Harken swivel block and special deep throated S hook

Note: Winch not included.

Forespar Nova Lift Davit Brochure
