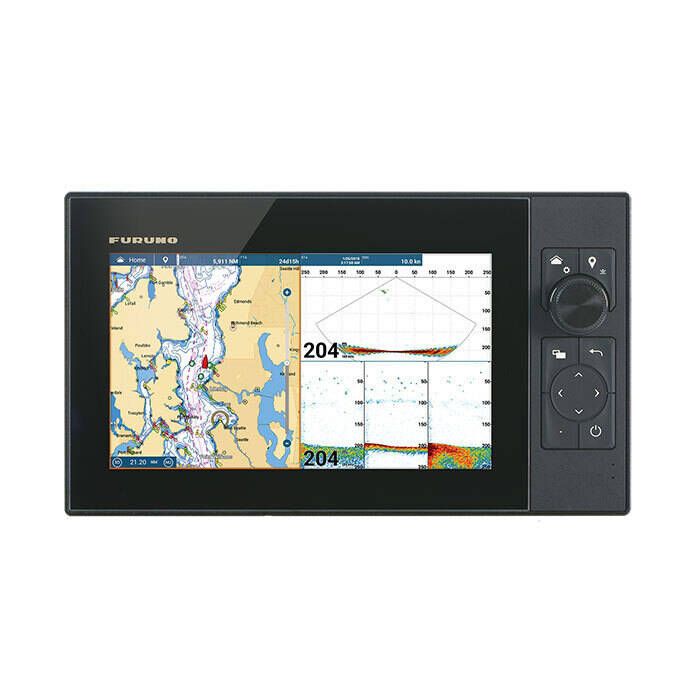

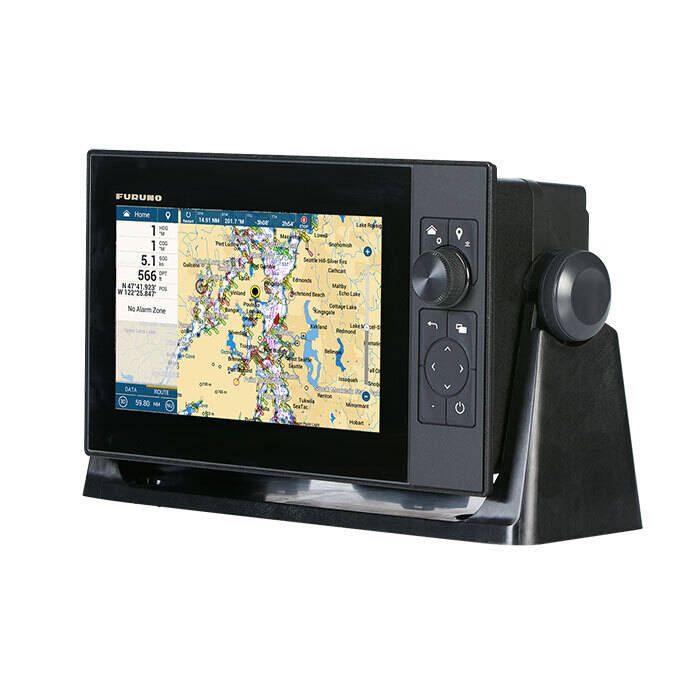

Furuno NavNet TZtouch3 Chartplotter/Fishfinder MFD with Sounder - 9" - TZT9F

Furuno's 9" NavNet TZtouch3 is a feature rich chartplotter / fishfinder that is easy and intuitive to use under any sea conditions. Rest your hand on the RotoKey™ as you crash through the waves; scroll, pan, and zoom in / out completely smooth & seamlessly as you navigate with ease to your charted destination.

Features:

• Powerful quad-core processor for lightning-fast response time
• Built-in single channel 1kW TruEcho CHIRP™ & CW fish finder
• Transmits pulses across a wide range of frequencies, allowing Furuno's superior digital signal processing (DSP) to display fish and structure targets with unparalleled clarity, accuracy and resolution
• Edge swipe accessibility and single tap menu options; simple viewing of App layers, Quick Pages, NavData and Shortcuts
• Full multi-touch display and a handy, built-in keyboard that features a Rotokey™, cursor pad and dedicated buttons
• PIN CODE Lock feature allows you to require a four-digit password to be entered upon startup, keeping your data safe against theft
• Create your routes at home using TZ Navigator, a web browser , or TZ iBoat iOS App. Then you can retrieve them from the cloud & download to your TZtouch3
• TZ Cloud also stores marks, routes, boundaries, photos, and catch data
• Using the DFF3D Multi-Beam Sonar, NavNet TZtouch3's PBG (Personal Bathymetric Generator) allows you to create custom high-resolution shaded relief charts of the seafloor
• Bottom images are drawn with shaded relief, depth contours, and variable colors, making it easy to identify hidden structure and ridges that hold fish in a simple, easy-to-interpret presentation
• Fish-It & Drift-It features, available only from Furuno, help you locate the correct spot to start your drift so you'll pass right over your fishing point
• Tapping on a location on the chart, such as a pinnacle, wreck, charted artificial reef, or even a hot fishing spot on the Fish Finder or DFF3D Multi-Beam Sonar screen, creates a temporary "fishing go-to point" with dynamic range rings, a course line between the point and the boat, and a temporary track line
• Easily select either raster, vector or fishing charts, Mapmedia brings an authentic vector and raster chart library to your NavNet TZtouch3

Display

• Type: Color TFT multi touch In-Plane Switching (IPS) LCD
• Screen size: 9" Wide
• Screen resolution: HD 1280 x 720
• Screen brightness: 1000 cd/m2 (typical)
• Display colors: 16,770,000 colors (chart plotter), 64 colors (radar/fish finder)
• Language: Bulgarian, Chinese, Danish, English (USA/UK), Finnish, French, German, Greek, Italian, Japanese, Norwegian, Portuguese, Russian, Spanish, Swedish

GPS / WAAS

• Receiver type: GPS: 72 channels, SBAS: 1 channel (C/A mode, WAAS)
• Receiving frequency: L1 (1575.42 MHz)
• Time to first fix:100 s (cold start)
• Accuracy: 10 m (GPS), 7 m (MSAS), 3 m (WAAS)
• Position update interval: 0.1 s (10Hz)

Chartplotter

• Cartography: MapMedia MM3D chart (CMOR (U.S. only) / C-MAP/Navionics/NOAA)
• Memory capacity: 30,000 user points, 30,000 points for ship's tracks, 200 planned routes (500 points per route)
• Alarms: Anchor watch, XTE, depth , speed, sea surface temperature , trip distance, fuel gauge , wind alarm , boundary alarm ( external data required)

Radar

• Display modes: Head-up , North-up Heading input required
• Echo trail: Interval: 15 s, 30 s, 1 min, 3 mins, 6 mins, 15 mins, 30 mins and continuous
• Target tracking: 30 ARPA targets (Up to 100 targets can be tracked with DRS-NXT series radar)
• Radar alarms: Guard zone, CPA/TCPA, trigger, video, azimuth, heading line

Fishfinder

• Transmit frequency: CW: 50/200kHz CHIRP: 40kHz to 225kHz
• Transducer: 300/600 W or 1 kW Matching box MB1100 required for some FURUNO transducers
• Display range: 2 to 1,200 m, shift: 0 to 1,200 m
• Display mode: ACCU-FISH™, A-Scope, Auto (Fishing/Cruising), RezBoostTM, Bottom Discrimination, TruEcho CHIRPTM and CW
• Picture advance: 8 steps: x4, x2, x1, 1/2, 1/4, 1/8, 1/16, stop
• Fish finder alarms: School of fish, school of fish for bottom lock

Interface

• CAN bus/NMEA2000: 1 Port
• Input: 065280, 126992, 126993, 126996, 127237, 127245, 127251, 127257, 127488, 127489, 125505, 128259, 128267, 129025, 129026, 129029, 129330, 129038, 129039, 129040, 129041, 129291, 129538, 129540, 129793, 129794, 129798, 129801, 129802, 129808, 129809, 129810, 130306, 130310, 130311, 130312, 130313, 130314, 130316, 130577, 130578, 130817, 130818, 130820, 130822, 130823, 130826, 130827, 130828, 130880
• Output: 126992, 126993, 126996, 127250, 127251, 127257, 127258, 128259, 128267, 128275, 129025, 129026, 129029, 129033, 129283, 129284, 129285, 130306, 130310, 130311, 130312, 130313, 130314, 130316
• NMEA 0183: 1 Serial output port
• Output: AAM, APB, BOD, DBT, DPT, GGA, GLL, GNS, GSA, GSV, RMB, RMC, RTE, TTM, VDM, VTG, WPL, XTE, ZDA
• LAN: 1 Port (100 BASE-TX)
• USB: 1 Port (USB 2.0) for control unit
• AUX I/O: 2 Ports (event switch and external power switch) and 1 port buzzer output
• SD card slot: 1 Micro SD card slot (Micro SDXC, rear), 2 slots card unit: model SDU-001 (option)
• Wireless LAN: IEEE802.11b/g/n, transmit frequency: 2.412 to 2,462 GHz, 11dBm max
• Transducer: 1 Port x MJ10 pin

Environment

• Temperature: -15° C to +55° C
• Relative humidity: 93% or less at +40° C
• Waterproofing: IP56

Power

• Power: 12 or 24 VDC (2.6 - 1.3A)
• Power output: 300 W or 600 W
