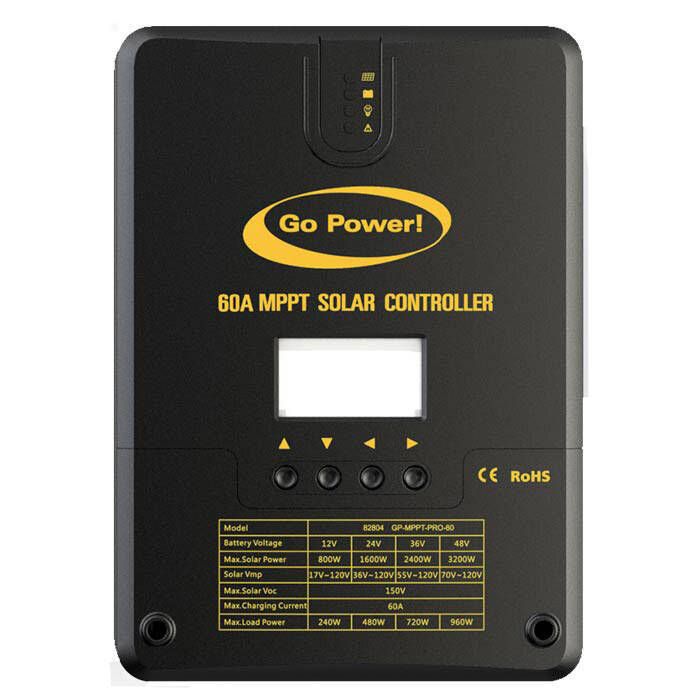

Go Power MPPT Digital Solar Controller - 60A - GP-MPPT-PRO-60

Go Power!'s largest solar controller. This 60 Amp MPPT Solar Controller uses Maximum Power Point Tracking (MPPT) charging with up to 98% efficiency.

Features:

• Regulates and prevents the solar panel from overcharging batteries
• Maximum Power Point Tracking (MPPT) charging
• 4 Battery charging profiles
• The most efficient MPPT controller for boats and RVs
• Compatible with all battery types, including Lithium
• Maximizes all power from your solar modules
• Easy-to-read back-lit digital remote display
• Stackable: Add additional controllers to expand your solar array
• Optional Accessories:
  • Surface-mounted remote display: Shows the charge current to the battery, battery voltage and battery-state-of-charge (SOC) - (GP-MPPT-PRO-R-40/60)
  • Bluetooth® Wireless Technology Dongle: Works seamlessly with the Go Power! Connect app to provide wireless monitoring of the controller's parameters and data view (GP-MPPT-PRO-BT-1)

Specifications:

• System Voltage: 12/24/36/48V (auto-recognition)
• Temperature Compensation:
  • -18mV/°C (12V systems)
  • -36mV/°C (24V systems)
  • -54mV/°C (36V systems)
  • -72mV/°C (48V systems)
• Controller Operating Battery Voltage Range (min. max.) [V]: 9V - 65V
• Max Charge Current: 60A
• Float Charge (Default= SEALED): 13.8 / 27.6V @ 25°C
• Main Charge (Default= SEALED): 14.1 / 28.2V @ 25°C, 0.5h Daily
• Boost Charge (Default- SEALED): 14.4 / 28.8V @ 25°C, 2h
  • Activation Battery Voltage: <12.3 / 24.6V
• Equalization Charge (Flooded): 14.8 /29.8 @ 25°C, 2h
  • Activation Battery Voltage: <12.1 / 24.2V (at least every 30 days)
• Over-Voltage Protection: 15.5 / 31.0 V
• Max Panel Input Voltage: 150 V
• Max PV Power Input:
  • 1040W / 12V
  • 2080W / 24V
  • 3120W / 36V
  • 4160W / 48V
• Min PV Voltage Input
  • 16V (12V Systems)
  • 33V (24V Systems)
• Idle Self-Consumption: 0.7W
  • 60mA typical at 12.0V
  • 30mA typical at 24.0V
• Grounding: Negative Grounding
• Ambient Temperature: -40° to +60° C
• Battery Types: Lead Acid (Sealed, Gel, Flooded), Lithium
• Max Wire Cross Section: AWG 2
• Dimensions: 11.22 x 8.07 x 3.66 inches (285 x 205 x 93 mm)
• Weight: 3.6kg / 7.9lbs
• Type of Protection: IP32

Go Power! 60 Amp MPPT Digital Solar ControllerProduct Manual (1.47 MB)

Go Power! 60 Amp MPPT Digital Solar ControllerSpecification Sheet
