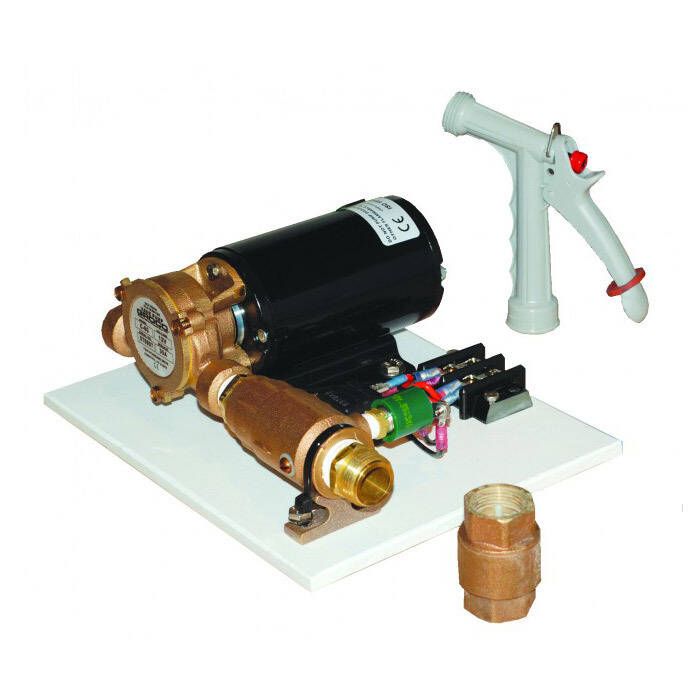

Groco Deck Wash Pump Kit

The Groco C60 Deck Wash Pump Kit delivers flow and pressure on demand for tough deck and anchor wash applications.

Features:

• Ignition protected, permanent magnet ball bearing motor with 316 stainless steel shaft
• Continuous duty shaft seal
• Supplied with inline check valve (CV-75) and saltwater spray nozzle (PGN-50)
• Mounting board included

Specifications:

• C-60 12V
  • Flow rate: 6.5 GPM
  • Port size: 1/2" inlet and 3/4" outlet
  • Pressure range: 20 - 40 PSI
  • Nominal voltage: 12V DC
  • Max. current draw: 27A
  • Recommended fuse: 30A
• C-80 12V
  • Flow rate: 7 GPM
  • Port size: 1/2" inlet and 3/4" outlet
  • Pressure range: 20 - 40 PSI
  • Nominal voltage: 12V DC
  • Max. current draw: 27A
  • Recommended fuse: 30A
• C-60 24V
  • Flow rate: 6.5 GPM
  • Port size: 1/2" inlet and 3/4" outlet
  • Pressure range: 20 - 40 PSI
  • Nominal voltage: 24V DC
  • Max. current draw: 14A
  • Recommended fuse: 20A
• C-80 24V
  • Flow rate: 7 GPM
  • Port size: 1/2" inlet and 3/4" outlet
  • Pressure range: 20 - 40 PSI
  • Nominal voltage: 24V DC
  • Max. current draw: 14A
  • Recommended fuse: 20A
