Imtra "X-Beam" G4 LED Replacement Bulb

Imtra's "X-Beam" G4 LED Replacement Bulb delivers bright warm or cool white directional light ideal for interior or exterior applications.

Features:

• LED replacement bulb makes an excellent upgrade for boats fitted with mid-size overhead spots and fixtures (Scandvik, Perko, ABI, etc.) with G4 side-pin halogen sockets

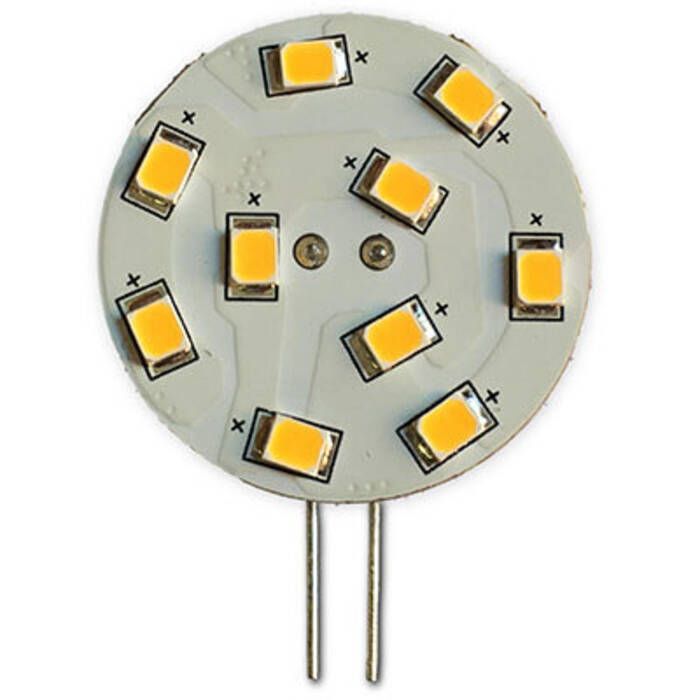

• (10) SMD LEDs deliver bright white directional light ideal for interior and exterior applications
• Proprietary PWM (pulse width modulation) constant-current drive, high-output thermally efficient SMDs, and built-in electrical protections combine to deliver high performance across the entire 10 - 30V DC range
• Benefits include cooler cabin temperatures, bright light output and substantial power savings
• 2-year limited warranty

Specifications:

• Base / Socket: G4 bi-pin (side mount)
• Brightness: 120 Lumens (warm white) / 150 Lumens (cool white)
• Beam Angle: 120°
• Nominal Voltage: 12 / 24V DC
• Operating Voltage: 10 - 30V DC
• Power Consumption: 2.2W
• Halogen Equivalent: 15W
• Current Draw: 180 mA @ 12V DC / 90 mA @ 24V DC
• Regulatory: CE, RoHS

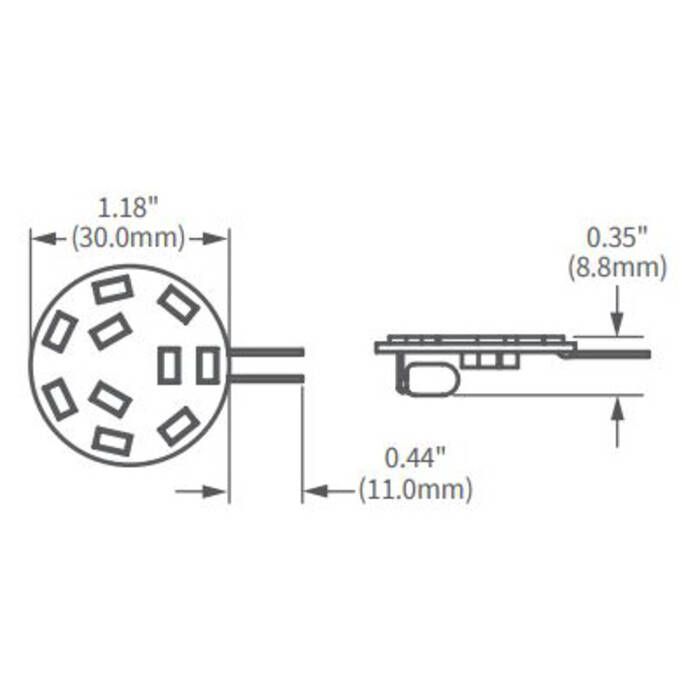

• Dimensions: 1.18" dia. x 0.33"

Manufacturer's Note: Warm white output color is typically chosen for interior spaces, while cool white is commonly used for exterior applications and utility areas.

Product Sheet (4.86 MB)

Dimmer Compatibility Chart
