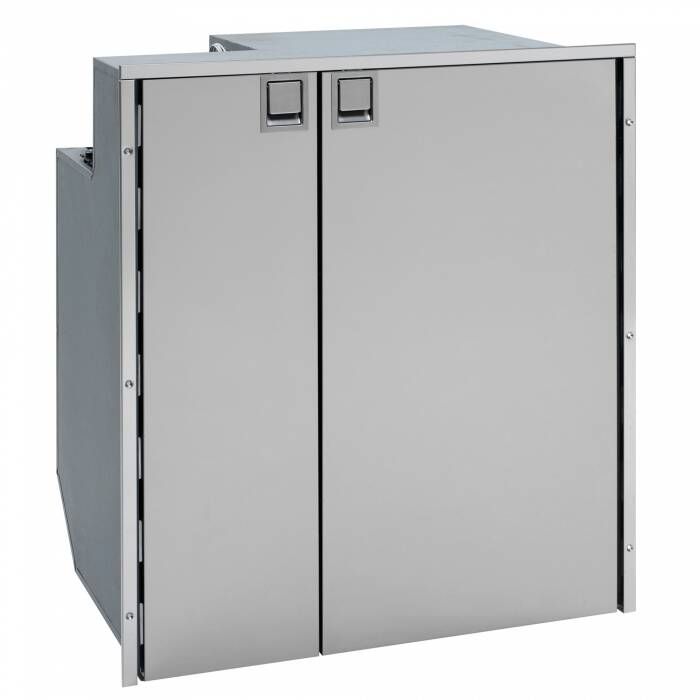

Isotherm Cruise CR 200 Inox Refrigerator/Freezer - 1200BB4YK0000

Isotherm Cruise Refrigerators offer innovative, reliable and energy-efficient refrigeration system solutions designed exclusively for sailing yachts and motor cruisers. This 7.0 cu. ft. refrigerator / freezer has a stainless steel door and flange. It operates on 12 or 24V DC and 115 or 230V AC.

Features:

• High quality construction using corrosion-resistant materials
• Fan-cooled 12 / 24V Danfoss compressor with low power consumption, quiet operation
• Installation frame (flange) and interior light included as standard equipment
• Right-hand or left-hand side opening options (right / left door swing)
• Classic models feature replaceable door panels (black or white standard)
• Stainless steel models have complete stainless steel door, handle and flange
• Separate freezer compartment (except Drink versions)
• Innovative Isotherm door handle prevents door from being accidentally opened
• Magnetic rubber seals keep moisture out and door firmly closed
• One-piece inner lining of food-quality, high density plastic
• Corner-mount, air cooled compressors and right-sized freezer compartments for optimum storage of refrigerated items
• Remote-mount compressor on models CR 36, 40 CUBE, and 42 allow for easy fit in tight locations
• Universal AC / DC kit optional: allows sufficient power supply worldwide
• The Isotherm warranty is 2 years from the date of purchase on all components and a 5 year limited warranty on the compressor

Specifications:

• Model No. 1200BB7YK0000
• Refrigerator Type: Side-by-Side Cabinet
• Interior Light: Yes
• Mount: Built-In / Flush ¹
• Refrigerator Volume: 5.2 cu. ft
• Freezer Volume: 1.8 cu. ft

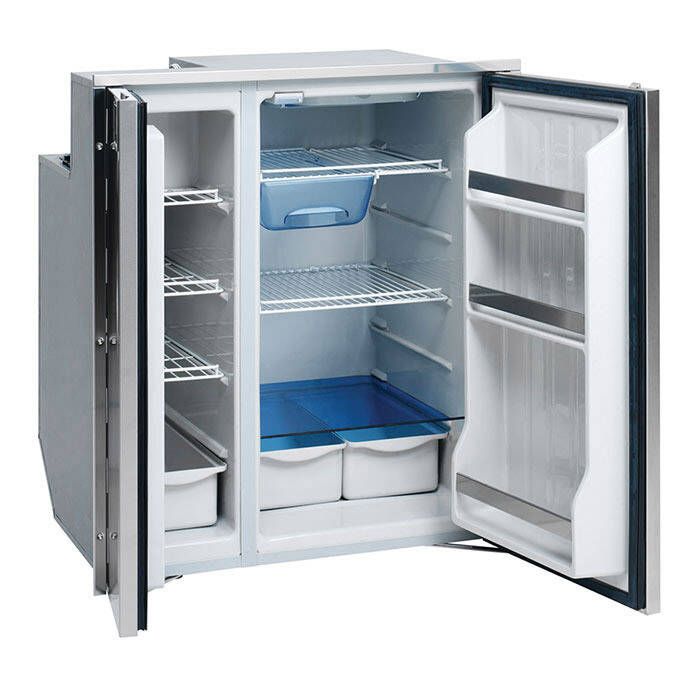

• Refrigerator equipped with (3) shelves on door, cold-cuts tray, 3-bottle wine caddy and (2) vegetable crispers
• Freezer compartment has (3) wire shelves and storage bin
• Low Freezer Temperature: 10°F
• Door Swing: Left (freezer) / Right (refrigerator)
• Compressor: Built-in Danfoss / Secop BD50F
• Separate thermostats for refrigerator and freezer
• Voltage: 12 / 24V DC and 115 / 230V AC (60 / 50 Hz)
• Current Draw:
  • Compressor Running: 6.0 Amp @ 12V DC (half at 24V DC)
  • Average: 2.3 Amp @ 12V DC ²
• Fuse: 15 Amp for 12V DC / 7.5 Amp for 24V DC
• Door and 4-Sided Flange Finish: Stainless steel
• Operating Ambient Temperature Range: 32°F - 113°F
• Dimensions (Cut-Out): 34.7" H x 28.9" W x 22.6" D

¹ Stainless Steel units are flush mounted. Classic units are proud mounted (door stands out from cabinet face).

² Average draw measured at 43°F in refrigerator, 72°F ambient temperature

Installation Instructions

Dimensions Diagram
