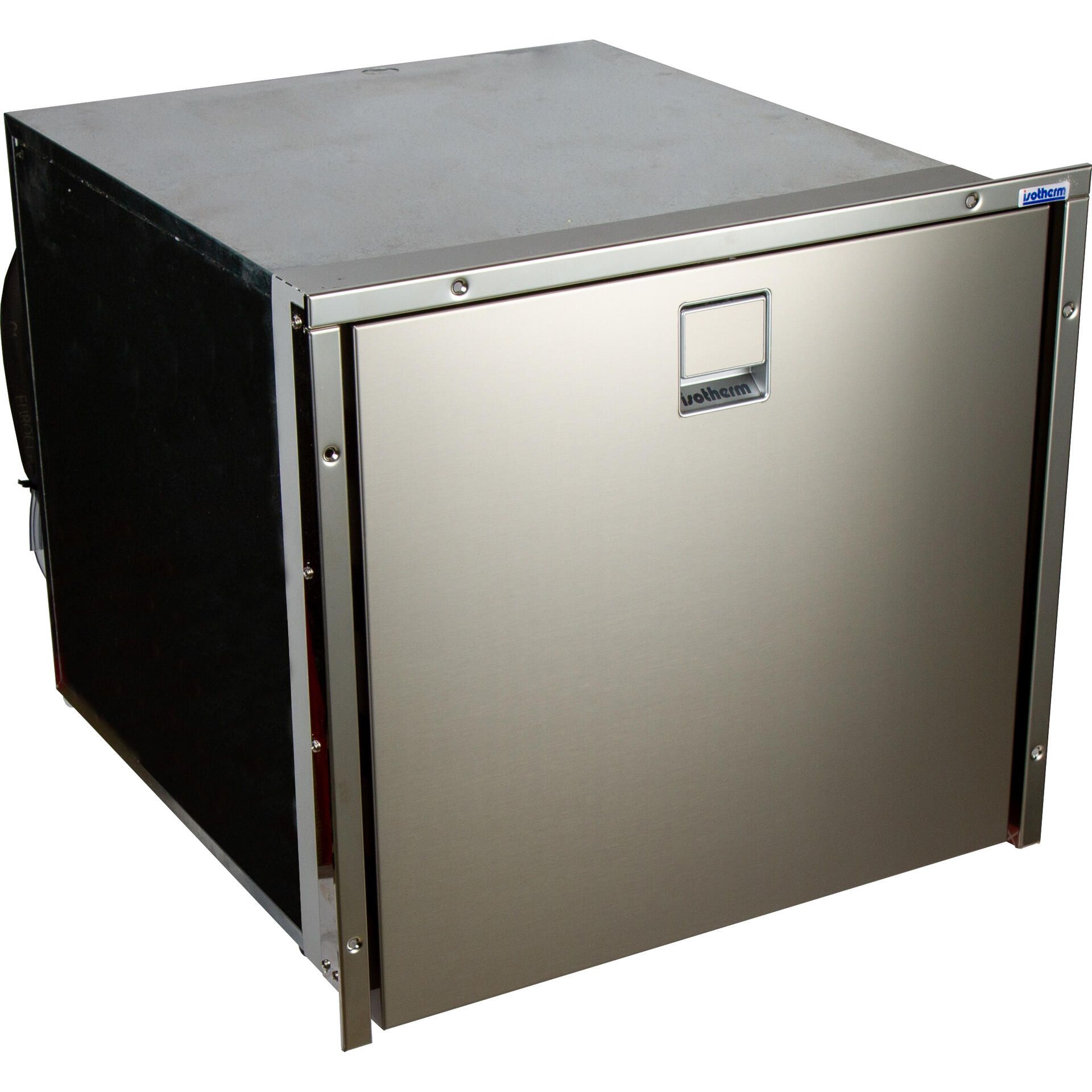

Isotherm Drawer 100 Clean Touch Stainless Steel Freezer - D100DNGIT73113AA

Isotherm Drawer 100 Clean Touch Stainless Steel Freezer.

Features:

• Finish: Clean Touch Stainless Steel
• AC/DC power
• 4 deg. side mount stainless steel flange
• Remote Mount Compressor: Can be installed up to 3.5' away

Specifications:

• Total Capacity: 100 L (3.5 cu.ft.)
• Compressor: BD50F
• Climate Class: T
• Instantaneous Amps Consumption: 4.84A at 12V, 2.42A at 24V
• Instantaneous Watt Consumption: 58W
• Average Consumption/24 hours: 503W at 25° C (77°F)
• Dimensions (W x H x D): 546 x 501 x 763 mm (21.49" x 19.72" x 30")
• Cutout Dimensions (W x H): 550 x 505 mm (21.65" x 19.88")
• Flange dimensions (Left, Right, Top): 20 mm (7/8")
• Function: Freezer only
• Control Type: Mechanical
• Lighting Modes: LED Strip
• Input Voltage: AC/DC

Owner's Manual (22.59 MB)
