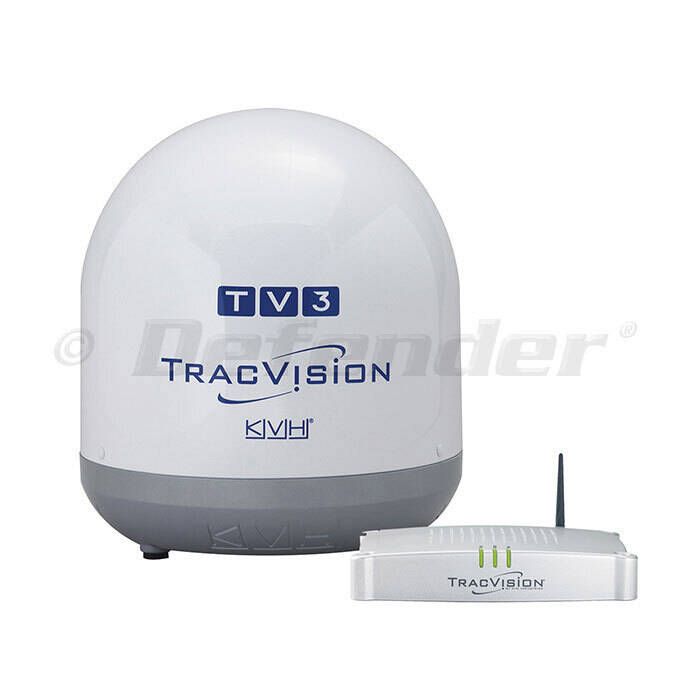

KVH TracVision TV3 with TV-Hub Web Interface - 01-0368-07

It's Easy! Install or Retrofit Today for Great TV Entertainment The TracVision TV3 with its single-cable design, compact 37 cm (14.5 inch) antenna, and device-friendly user interface, is a snap to install, set up, and use. The DVB-S2 compatible TracVision TV3 is the perfect solution for single- or multiple-receiver installations. In no time, you'll be enjoying your favorite television programming, right from your boat.

Small Marine Satellite TV System that's Big on Built-in Features A great choice for powerboats or sailboats frequenting cruising areas located within 100 nautical miles offshore, the TracVision TV3 supports DIRECTV®, DISH Network®, Bell TV, and circular and linear Ku-band regional services worldwide. The IP-enabled TracVision TV-Hub includes built-in Ethernet and Wi-Fi for easy interface with smartphones, tablets, smart TVs, and computers, giving you system information at your fingertips.

IP AutoSwitch OPTIONAL IP AutoSwitch for multiple receiver installations delivers simple auto-switching on Dish Pro and DiSEqC-compatible services so you can easily access the channels and programs you want to watch – even when they are not on the same satellite ;

Complementary Systems Complement your KVH TracVision satellite television system with a KVH TracPhone V-IP satellite communications system for fast and reliable satellite Internet and VoIP services. TracPhone V3-IP, V7-IP, and V11-IP are designed exclusively for KVH's mini-VSAT Broadband network, the world's no. 1 maritime VSAT service.

Features:

• The 14.5 inch diameter antenna features proprietary RingFire™ technology for stronger signals, wider geographic coverage, and better reception
• TracVision TV-Hub, a streamlined IP-enabled antenna control unit, enables automatic satellite switching
  • The TV-Hub enables a friendly user interface that you can access from any mobile device or laptop, providing system information at your fingertips
  • The TracVision TV-Hub is the center of it all
  • The innovative TracVision TV-Hub integrates the advanced functionality of the TV-series system into one streamlined unit, providing features that make the TV-series very easy to use
  • IP-enabled antenna control unit with Ethernet connection and built-in Wi-Fi interface allows access to system information from any Wi-Fi device
  • Automatic satellite switching makes it easy to access all programming and local channels wherever you travel, and with whatever service you use Built-in SWM-compatible technology supports DIRECTV programming
  • Built-in DISH Pro output supports DISH Network® and Bell TV service
  • Two output ports provide the flexibility to use legacy receivers
  • Status indicators quickly convey information about antenna function and power
  • 10-30 VDC power input to the TV-Hub provides power to the antenna
  • NMEA 0183/2000 inputs for heading and GPS enable fastest satellite acquisition
  • User-friendly interface provides a wizard for easy installation and setup as well as system information at your fingertips from any smartphone, tablet, smart TV, or computer
• Supports DIRECTV U.S., DISH Network, Bell TV
• Supports multiple receiver installations
• Low elevation angle for better tracking in northern latitudes
• Sleek IP-enabled TracVision TV-Hub delivers easy setup and operation, and easy user interface for system information from any smartphone, tablet, smart TV, or computer
• HDTV compatible (Ku-band services only)
• Integrated Single Wire Multiswitch (SWM-8) built into below decks TV-Hub supports up to 8 DIRECTV receivers
• Single coaxial cable for power, data, and video enables easy installations and retrofits
• DVB-S2 compatible
• Advanced inertial-based stabilized search for fast satellite acquisition
• High performance tracking with advanced algorithms for crystal-clear television picture in heavy seas
• Built-in worldwide satellite library
• IP AutoSwitch option for multiple receiver installations – for simple auto-switching on Dish Pro and DiSEqC-compatible services
  • IP AutoSwitch IP AutoSwitch for multiple receiver installations delivers simple auto-switching on Dish Pro and DiSEqC-compatible services so you can easily access the channels and programs you want to watch – even when they are not on the same satellite
  • Complementary Systems Complement your KVH TracVision satellite television system with a KVH TracPhone V-IP satellite communications system for fast and reliable satellite Internet and VoIP services. TracPhone V3-IP, V7-IP, and V11-IP are designed exclusively for KVH's mini-VSAT Broadband network, the world's #1 maritime VSAT service
• World-class warranty coverage and support

Package Includes:

• (1) TracVision TV3
• (1) TV Hub A (72-0633-01)
  • (3) #10-32 self-locking screws
  • (4) 1/4" flat washers
  • (4) M4 cap screws
  • (4) 1/4"- 20 hex bolts
  • (4) 1/4" flat washer
  • (4) 1/4"-20 lock nuts
  • (6) plastic screw caps
  • (1) 3mm Allen hex key
  • (1) DC block splitter
  • (2) 6" tie wraps
  • (1) Right-angle "F" connectors
  • (1) Foam seal
  • (1) Rubber cable boot
  • (1) 50' (15 m) RG-6 RF cable
  • (1) 50' (15 m) ground wire
  • (1) Anti-Seize lubricant
  • (1) silicone grease

TracVision TV-Series Brochure

Quick Start Guide
