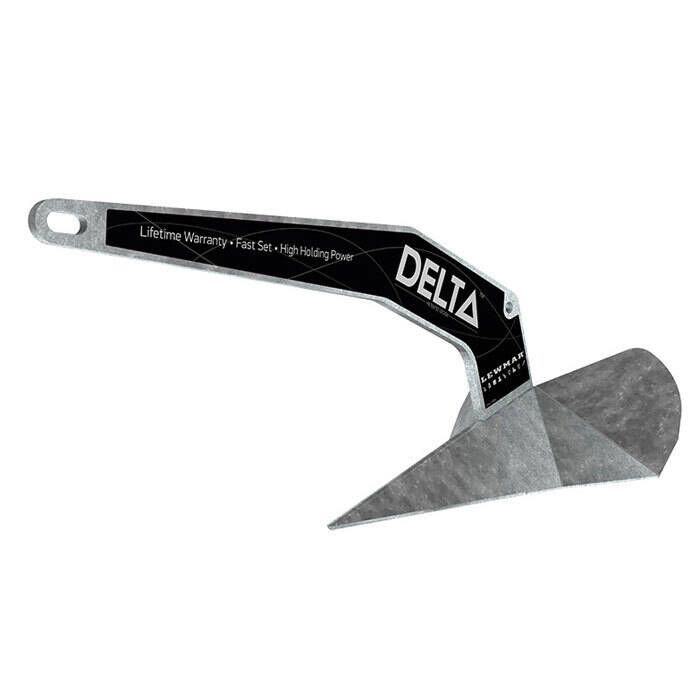

Lewmar Delta Anchor

The Delta® anchor is constructed of high-grade manganese steel or Duplex stainless steel for maximum tensile strength. Its unique shank profile and ballasted tip make it self launching. And its low center of gravity and self-righting geometry ensure that it will set immediately.

Consistent and reliable in performance, the Delta® anchor is guaranteed for life against breakage, has Lloyd's Register General Approval of an Anchor Design as a High Holding Power anchor and is specified as the primary anchor used by numerous National Lifeboat organizations.

9 lbs Specifications:

• Recommended Chain Size: 1/4"
• Power Boat Size: 18' - 22'
• Sailboat Size: 20' - 24'

14 lbs Specifications:

• Recommended Chain Size: 1/4"
• Power Boat Size: 24' - 30'
• Sailboat Size: 26' - 31'

22 lbs Specifications:

• Recommended Chain Size: 5/16"
• Power Boat Size: 32' - 39'
• Sailboat Size: 34' - 41'

35 lbs Specifications:

• Recommended Chain Size: 5/16"
• Power Boat Size: 42' - 50'
• Sailboat Size: 44' - 52'

44 lbs Specifications:

• Recommended Chain Size: 3/8"
• Power Boat Size: 47' - 56'
• Sailboat Size: 49' - 58'

55 lbs Specifications:

• Recommended Chain Size: 3/8"
• Power Boat Size: 52' - 62'
• Sailboat Size: 54' - 64'

70 lbs Specifications:

• Recommended Chain Size: 3/8"
• Power Boat Size: 50' - 60'
• Sailboat Size: 50' - 60'

88 lbs Specifications:

• Recommended Chain Size: 3/8"
• Power Boat Size: 63' - 75'
• Sailboat Size: 64' - 75'

110 lbs Specifications:

• Anchor Weight: 50 kg (110 lbs)
• Recommended Chain Size: 12 mm (1/2")

140 lbs Specifications:

• Anchor Weight: 63 kg (140 lbs)
• Recommended Chain Size: 12 mm (1/2")
