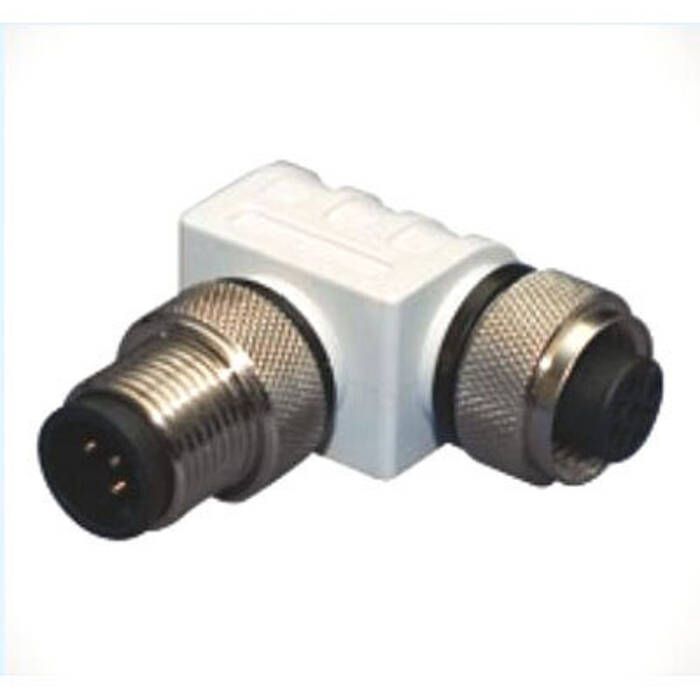

Maretron NMEA Micro Male to Female Connector - 90deg. - ELB-CM-CF

The 90 Degree Maretron NMEA Micro Male to Female Connector is intended to aid turning tight radiuses without unduly straining the wires within a cable

Features:

• Ideal when mounting a device in a location with shallow depth possibilities
• NMEA 2000® Approved
• A 90 degree male to female connector for Micro or Mid size cable runs or connections
• Waterproof rated to IP67

Specifications:

• Molded Body Mat/Color: Thermoplastic PUR/Gray
• Contact Carrier Mat/Color: Nylon PUR
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Rated Current: 4.0 Amps
• Rated Voltage: 50V
• Protection Class: IEC IP67, NEMA 1,3,4,6P
• Temperature Range: -40°C to 105°C (-40°F to 221°F)
• Approvals: NMEA 2000 ® Approved, IEC: IEC 61162-3

Dimensions Diagram
