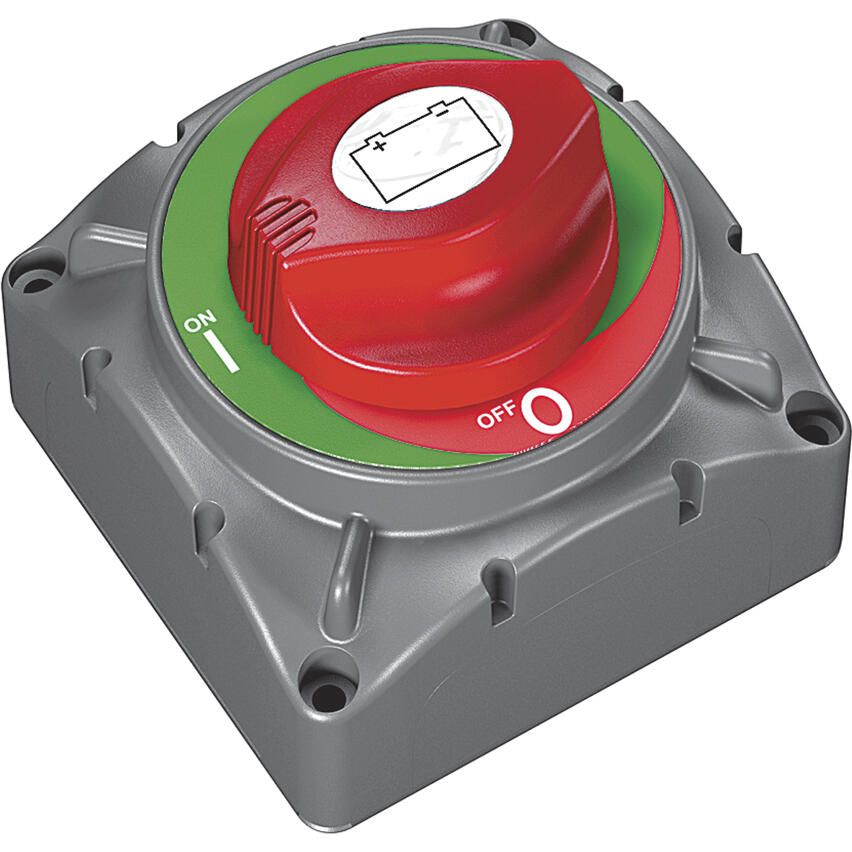

Marinco BEP Heavy Duty Battery Switch - 720

The 720 Heavy-duty Battery Switch fits into the same contour lock system as used on the battery distribution system. Rated at 600A continuous and 2500A cranking. It is well suited to larger vessels. As with the 701, the 720 can be recessed or surface mounted. The 720 uses the same style of self cleaning sliding contact as used in the 701 and uses the same label sheet.

Specifications:

• Dimensions (L x W x H): 4" x 4" x 3.5" (102 x 102 x 90 mm)
• Continous: 600A
• Inter.(5 min): 800A
• Crank (10 sec): 2500A
• Voltage: 48V DC
• Operation: On/Off
• Studs: 2 x 1/2" (12 mm)
• Cable to meet rating: 2 x 3/0 (95 sq.mm.)
