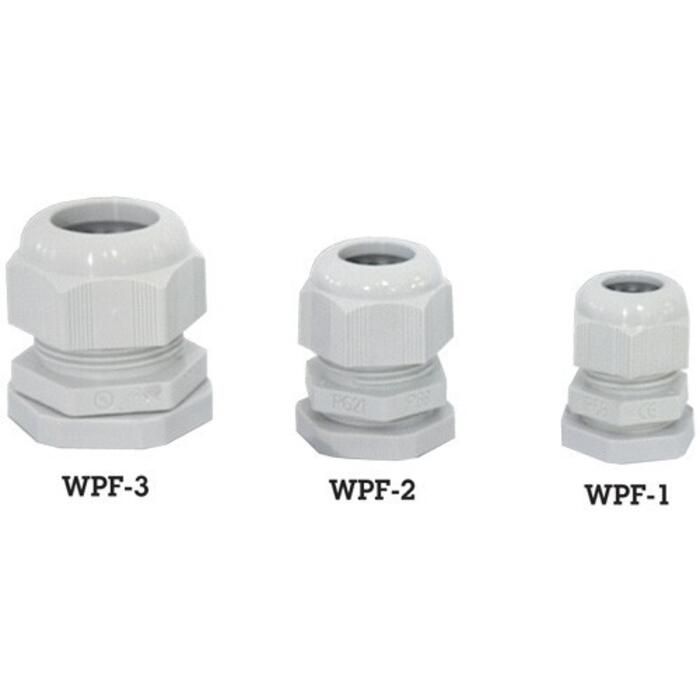

Newmar Waterproof Cable Clam/Deck Seal

For complete waterproof assembly (IP68) use these compression fittings. Retaining nut secures fitting to enclosers, compression hub creates waterproof seal around wires. Various sizes are available in a wide range of cable diameters.

WPF-1 Specifications:

• Cable Diameter Range: .2"- .47"
• Mounting Hole Diameter: .91" (22.5 mm)
• EX Encolsure Knock-Out Size Ref.: PG-16

WPF-2 Specifications:

• Cable Diameter Range: .35"- .71"
• Mounting Hole Diameter: 1.14" (29 mm)
• EX Encolsure Knock-Out Size Ref.: PG-21

WPF-1 Specifications:

• Cable Diameter Range: .55"- .98"
• Mounting Hole Diameter: 1.48" (37.5 mm)
• EX Encolsure Knock-Out Size Ref.: PG-29
