Scanstrut Cable Clam/Deck Seal - DS16-P-BLK

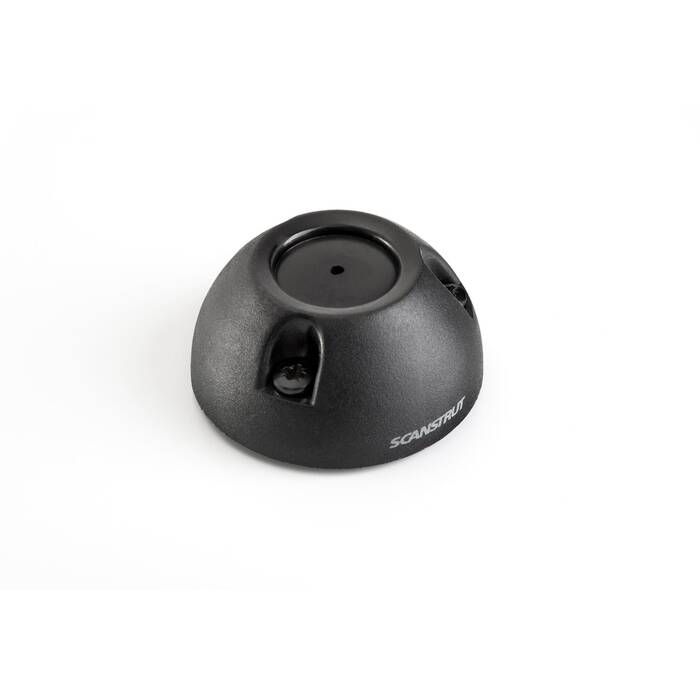

The Scanstrut DS16-P-BLK Deck Seal is a waterproof, compact, vertical entry cable seal that is designed to fit cable diameters from 0.08" to 0.24" (2 mm - 6 mm). Its dome-shaped profile provides a stronger, impact-resistant design and captive nuts in the base make for an easy assembly.

Features:

• Fits cable diameters 0.08" to 0.24" (2 mm - 6 mm)
• Waterproof:
  • Tapered bung forms a watertight seal
  • Supplied with a closed-cell base seal
  • IP68 tested and approved
• No need to remove cable connectors:
  • Split-seal option does not require connector removal during install
• Multi-functional dome shape:
  • Provides a stronger, impact-resistant design
  • Provides additional water shield
• Made of high impact plastic
• Captive nuts make for easy assembly and allow reliable repeat installations

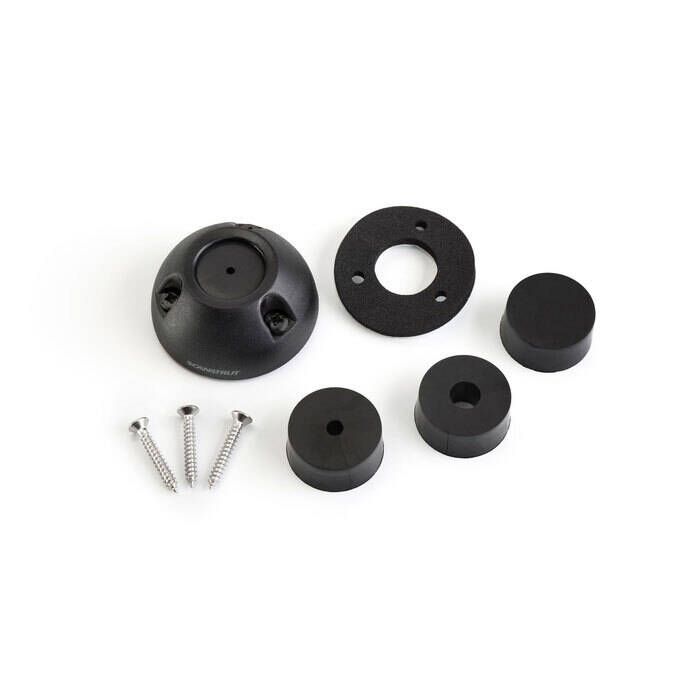

• Supplied with both pre-drilled and blank inner seals to make installation as easy as possible

Specifications:

• Fits Cable Diameters: 0.08" to 0.24" (2 mm - 6 mm)
• Max Connector Size: Up to 16mm (0.63")
• Waterproof: IP68
• Color: Black
• Orientation: Vertical entry
• Material: High impact plastic

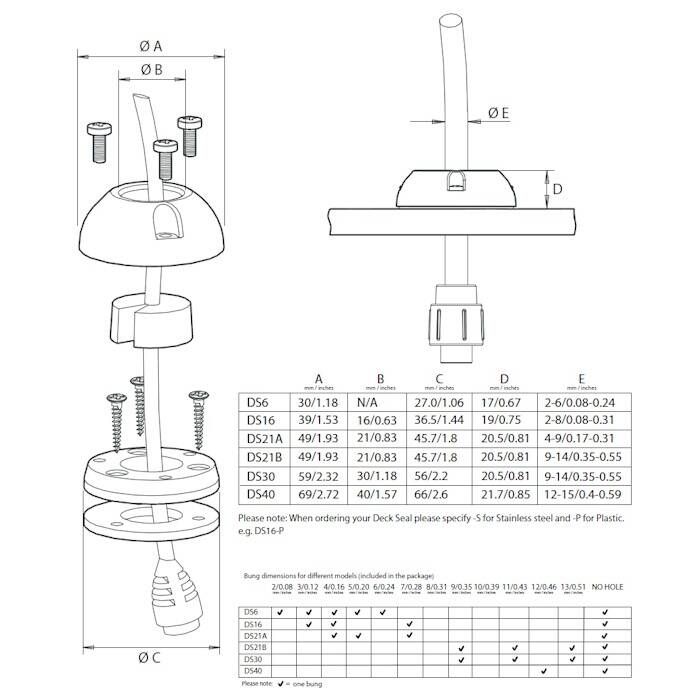

Dimensions Diagram

Installation Instructions
