Scanstrut Scanpod Helm Pod SPH-12

With great design features, the Scanstrut Helm Pod is a perfect choice for all cockpit configurations; with options to fit radar displays, chartplotters and standard navigation instruments.

Features:

• Universal Helm Fixing
  • Fits pedestal rails from 0.98" - 1.33"
  • Using a unique clamping system, the Pod can fit rail widths from 7" upwards
• Secure and Watertight Install

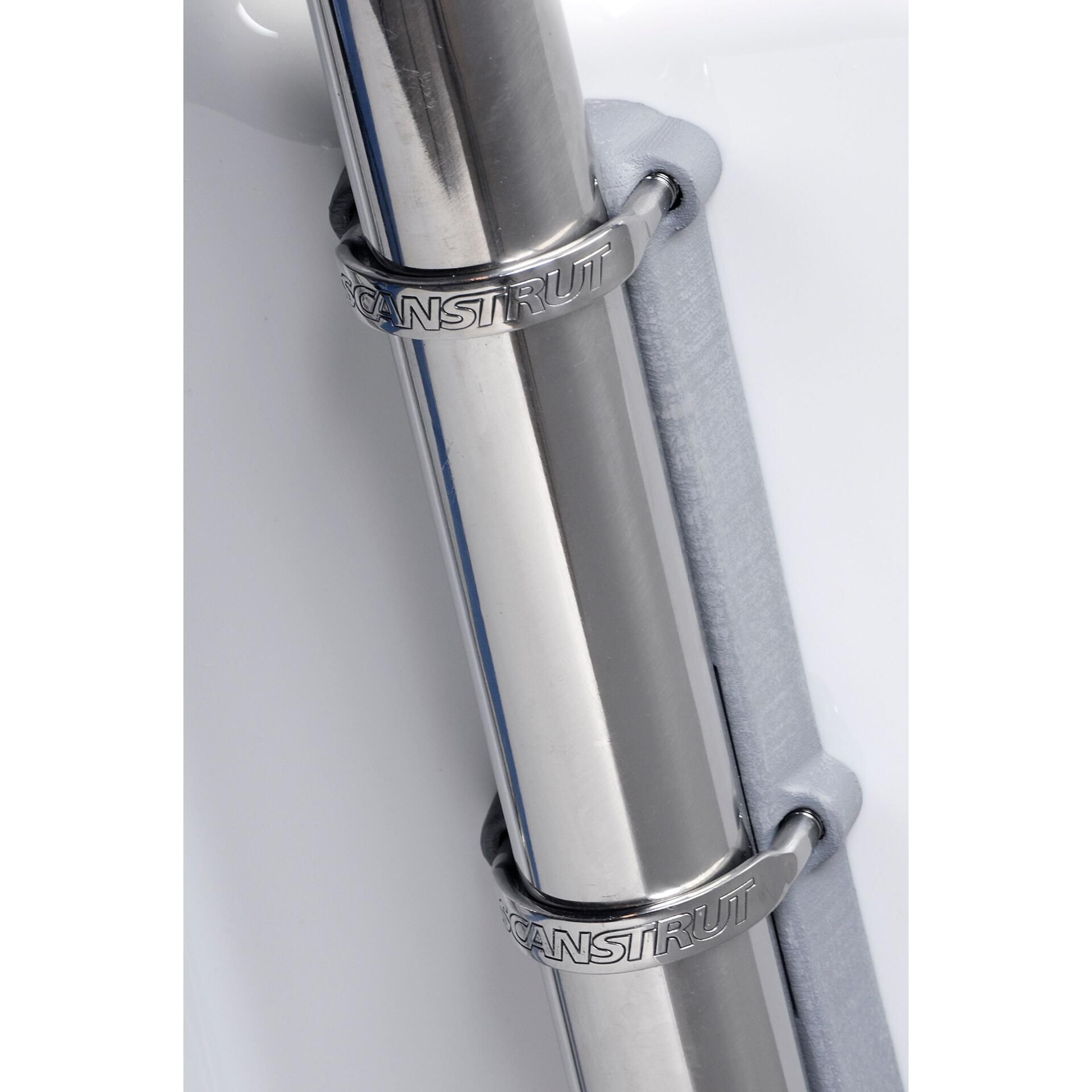

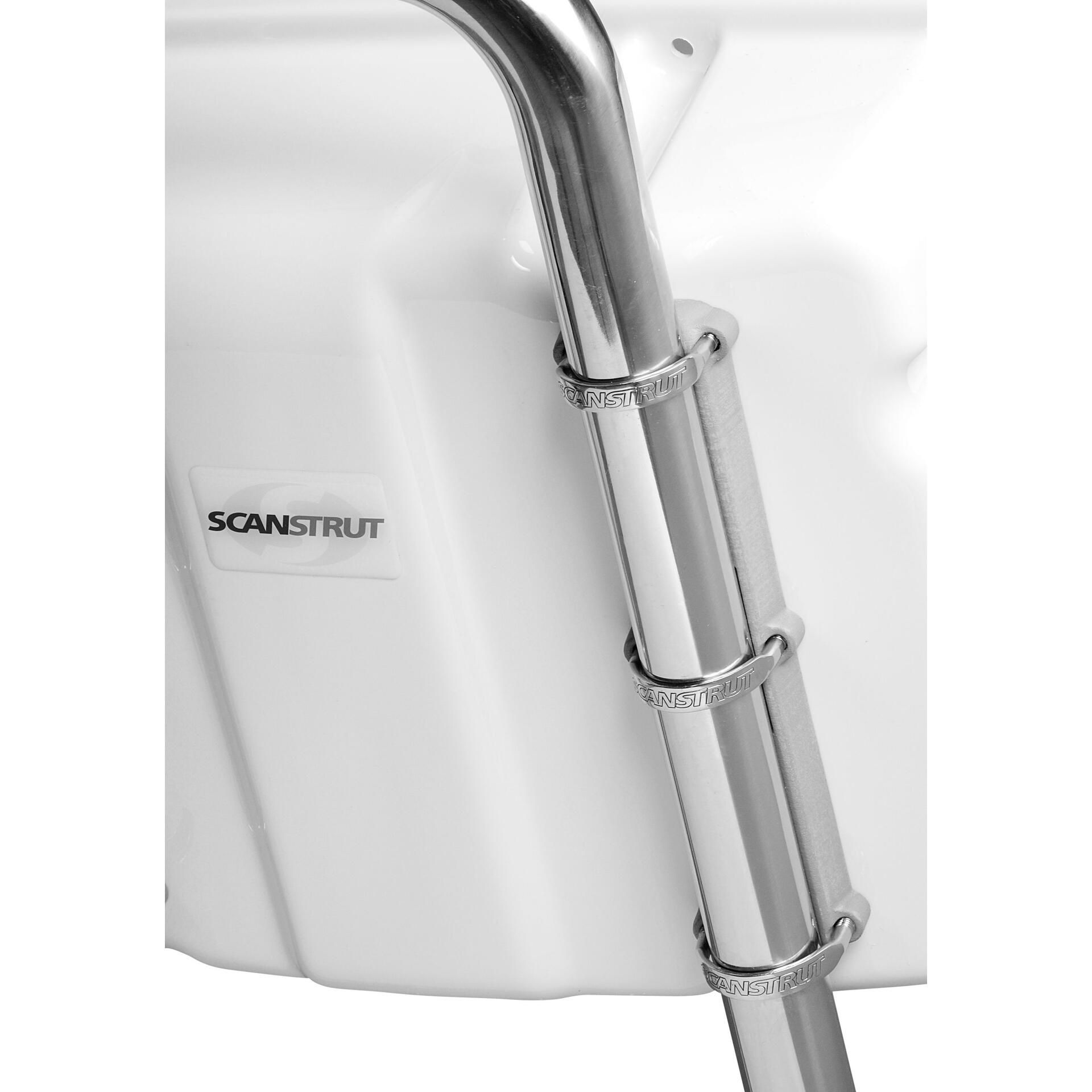

• Saddle system supports the Stainless tubing enabling a secure and rigid fit onto the pedestal
• Ensures a watertight seal at cable entry
• Customized U-bolts fit around rail and through the saddles into the back of the pod
• Eliminates the need for time consuming and awkward drilling of the Stainless rail
• Fixings fit from back to front cutting their threads into injection molded ABS inserts designed into the pod front
• Allows for a quick and safe install and repeat servicing
• Manufactured from a high tear strength silicone
• Very high resistance to heat and UV providing confidence that it will not deteriorate over time
• As a standard, the pod is provided uncut

Specifications:

• Designed for 3/4 Standard Instruments (e.g. ST60)
• Profile: Slim
• Pod Seal Material: high tear strength silicone
• Color: White

Note: Includes pod only - other components sold separately.
