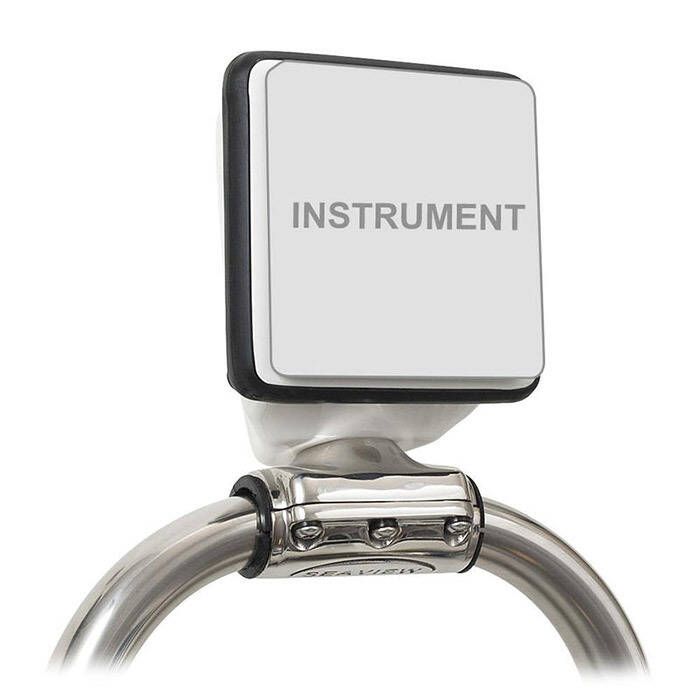

Seaview Sailboat Instrument Pod SP1S

The Seaview® Sailboat Instrument Pod SP1S sailboat instrument pod (SPOD) designed for mounting chartplotters, radar displays and navigation instruments on standard 9.5" and 12" pedestal guards.

Features:

• Fits the majority of steering systems from Jefa, Whitlock and Edson and can be custom tailored for other systems
• Back of each box has a continuous radius that matches up with the unit's stainless steel pod clamps for a precise viewing angle
• Polished stainless steel clamps supplied with (3) rubber inserts to fit 1", 1.125" and 1.25" rails
• Housing made from UV-resistant ABS material and secured with tamper-proof screws
• Watertight gasket prevents water from entering the pod while a GORE-TEX vent lets hot air escape

Specifications:

• Seaview Model No. SP1S Specs:
  • Application: Un-cut
  • Usable Face: 4.625" W x 4.625" H
  • Max. Cutout: 4.125" W x 4.125" H
  • Dimensions (Overall): 5.038" W x 5.163" H x 3.125" D
  • Mount: Pedestal guard / rail
• Seaview Model No. SP1S2 Specs:
  • Application: Un-cut
  • Usable Face: 5" W x 5" H
  • Max. Cutout: 5.375" W x 5.375" H
  • Dimensions (Overall): 5.38" W x 5.38" H x 3.125" D
  • Mount: Pedestal guard / rail

Instrument / Display Compatibility Guide
