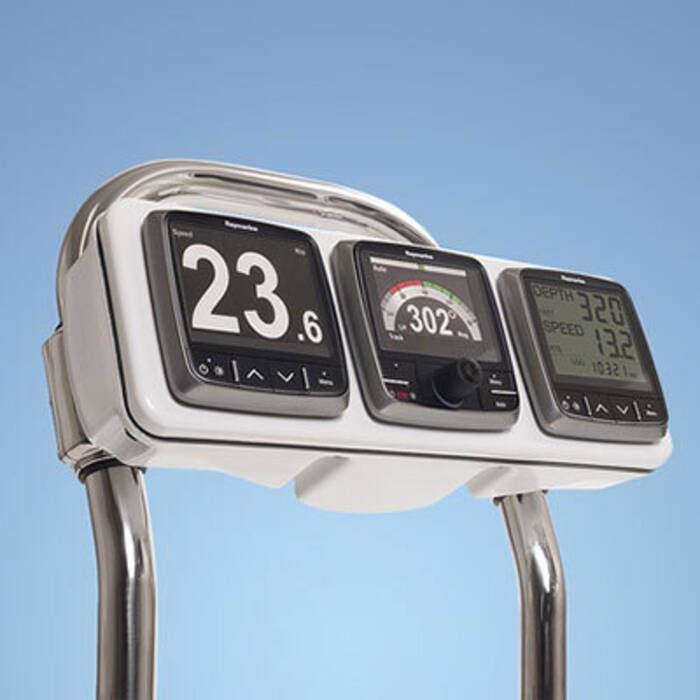

Seaview Sailboat Instrument Pod - SP5S

Seaview's Sailboat Instrument Pod SP5S is designed for mounting chartplotters, radar displays and navigation instruments on standard 9.5" and 12" pedestal guards.

Features:

• Fits the majority of steering systems from Jefa, Whitlock and Edson and can be custom tailored for other systems
• The back of each box has a continuous radius that matches up with the unit's stainless steel pod clamps for a precise viewing angle
• Polished stainless steel clamps supplied with (3) rubber inserts to fit 1", 1.125" and 1.25" rails
• Housing made from UV-resistant ABS material and secured with tamper-proof screws
• A watertight gasket prevents water from entering the pod while a GORE-TEX vent lets hot air escape
• Up to two (2) optional accessory pods (sold separately) can be added for optimal setup

Specifications:

• Seaview Model No. SP5S
• Application: Un-cut
• Usable Face: 14.75" W x 5" H
• Max. Cutout: 13.875" W x 4.125" H
• Dimensions (Overall): 15.25" W x 5.5" H x 3.185" D
• Mount: Pedestal guard/rail

Note: Includes pod only - other components sold separately.

Instrument/Display Compatibility Guide
