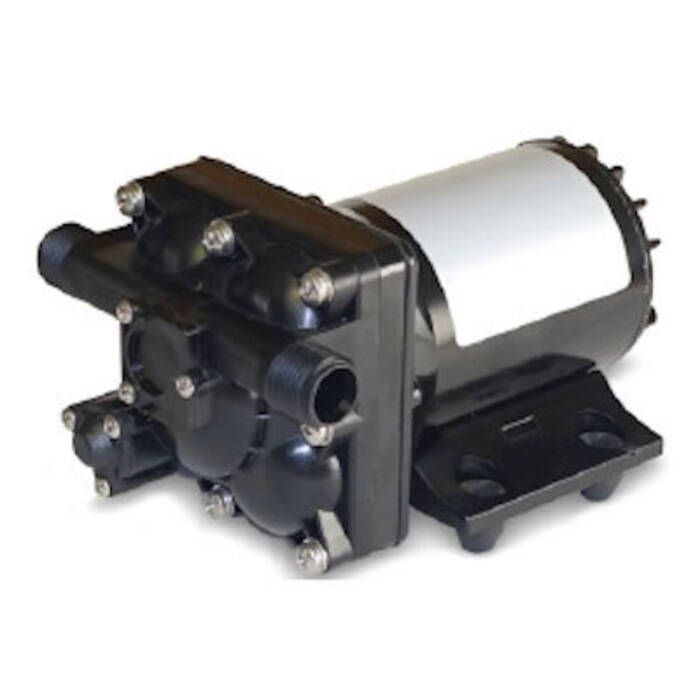

SHURflo Circulation Pump - 4728-110-E10

Specifically designed for refrigeration cold plate circulation, this pump features a positive displacement four-chamber diaphragm and EPDM valves for proven priming ability and longer life.

Features:

• Replacement for 2095
• Continuous Duty Motor
• Cold Plate Circulation
• Self-Priming up to 4'
• Run Dry Capability
• Seamless Motor Shell-Waterproof

Specifications:

• Pump:
  • Type: 4 Chamber Diaphragm
  • Ports: 1/2"-14 NPSM-Male
  • Liquid: 130°F (54°C) Max
  • Prime: 4' (1.21 M)
  • Run Dry: Yes
  • Inlet PSI: 30 PSI
• Electrical:
  • Motor: 12 DC Permanent Magnet, Continuous Duty
  • Protection: Thermal Overload, Automatic Restart
  • Leads: Black - 14 AWG, 13" (33 cm) Red - 14 AWG 14" (35 cm)
  • Fuse: 5 Amp Recommended
  • Control: 45 PSI Internal By-Pass (No External Control)
• Materials:
  • Housings: Polypro
  • Valves/Seals: EDPM
  • Diaphragm: Santoprene
  • Hardware: Stainless Steel
• Approvals:
  • CE
  • Ignition Protected 8846
  • IMCI Certified
