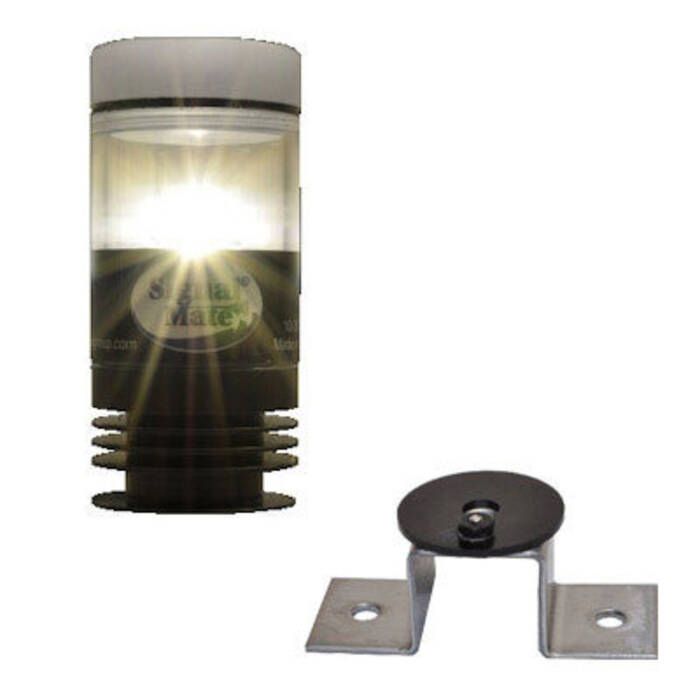

Signal Mate LED Combination Anchor Light with Strobe for Distress - 3NM360WS

Signal Mate's LED Combination Anchor Light is used for power and sailboats at anchor with a built in inland distress flash rate of 60 per minute for emergencies.

Features:

• Used by military, commercial and recreational vessels worldwide
• Suitable for power, sailboats and commercial vessels up to and over 50 meters (164 feet)
• Provides constant brightness over the full operating range of 10 to 30V
  • Ensures the light will meet or exceed the visibility requirements as the battery voltage drops from use
• Clear top allows the light to be used with or without a Signal Mate Controller (Sold separately) for distress signaling to be seen by aircraft
  • Provides illumination at night for the wind vane to observe wind direction while at anchor
• Inland distress signal = 1 Flash per second

Specifications:

• Visibility: 3NM Strobe / distress at 60 flash per min
• Certified: USCG Certified, ABYC A-16, 72 COLREGS
• Boat type: Commercial, power, sailboat up to and over 50 meters (164 feet)
• Horizontal viewing angle: 360 Degrees
• Voltage range: 10-30 VDC
• Current draw: 0.160 Amps at 12 VDC
• Protection: Polarity & 1500W surge
• LED: High Brightness 50,000 hours
  • Number of LEDs: 1
  • Watts: 1
  • Color: White
  • Led driver: Constant current
  • EMI: Passive filtering
• Construction: Hard coated anodized aluminum, polycarbonate lens
• Wiring: 2.5 Feet, 3 wire, 20 AWG tinned, UV jacket marine wire
• Installation: 3 Wire
• Durability: Water & vibration proof
• Dimensions: 3.25" H x 1.5" Dia
• Mounting: 1/4" x 20 Female threads on bottom of light for mounting
• Included:
  • DPDT Wired Switch
  • BRKT360 Brackets
• Optional (Sold separately): PADPT1, PADPT75
• Warranty: 5 Year limited warranty covering materials and workmanship
• Made in USA
