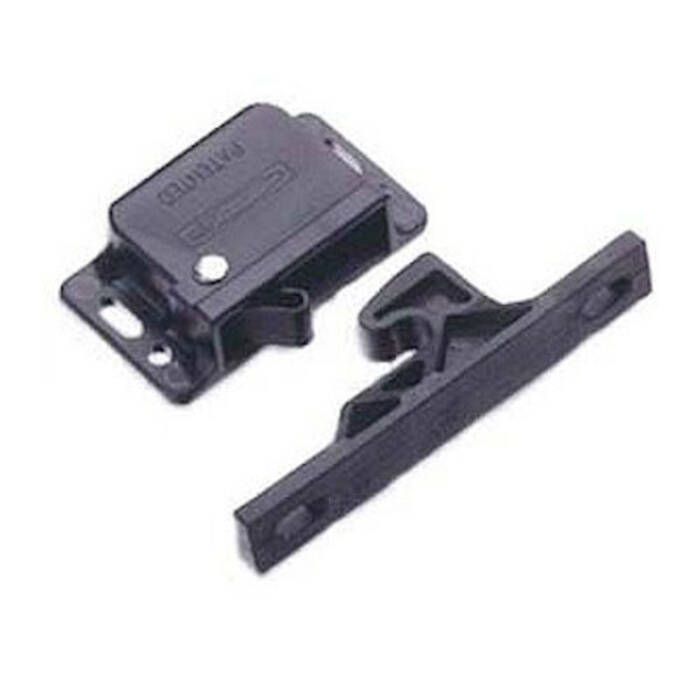

Southco Grabber Catch Latch - C3-810

Features:

• Get an extra degree of closure force on doors, with this compact latch's internal spring-loaded pawl that provides over-center latching
• The built-in pull-up provides tension to help prevent looseness or rattle of the door against the frame
• Latching function is accomplished in a relatively low-profile mechanism, just 13.7 mm (.54") thick
• Over-center action actually pulls door tighter to latch, releasing it when you pull to open door
• Latches can be mounted in any orientation
  • Catch and keeper are marked to match proper orientation
• Flammability rating for ABS components of other Grabber Catch latches is UL94-HB
• Spring Loaded over-center latching
• One assembly includes catch and keeper
• Orient keeper to latch
  • The arrow on the keeper should point towards the cam
    • Mount to door and adjust for smooth latching
    • Min. distance from frame (or surface on which catch sub- assembly is mounted) to centerline of door hinge is 150 mm (5.9 ")
• Industry Applications:
  • Marine
  • Automotive
  • Passenger Vehicles
  • Trucks Electronic
  • Enclosures
  • Exhibits/Signs
  • Industrial Enclosures
  • Vending Machines

Specifications:

• Spring Color: Black
• Material: Plastic
  • Material and Finish PC/ABS, black and glass-filled nylon, black, mineral filled nylon, black
• Color/Appearance: Black
• Installation: Rivet / Screw (thru hole) (Not Included)
• Pull up: 44.000 n (9.89 lbs)
• Dimensions: 2-4/5 in x 1-4/5 in
• Performance Details Operating temperature range: -30ºC (-20ºF) to 60ºC (140ºF)
• Flammability rating: UL94-HB Installation
• Notes Max. tightening torque on mounting screws: (not supplied)
  • Catch: 1.1 N m (9.7in lbf)
  • Keeper: 2.8 N m (24.8in lbf)
