Veratron Intelligent Battery Sensor - B00084201

Item: #967670 | Part Number: B00084201
$211.16
Important Info
Want an email once available?
Notify Me
Total
$211.16
Description

After the simple electrical and mechanical integration, the sensor accurately measures the battery voltage, current, and temperature parameters and internally calculates the State Of Charge, State Of Health, and Time Remaining accordingly. Specifications: Operating voltage: 6 - 16.5V Operating current (permanent): ± 155A Max current: ± 1500A (500 ms) Power...

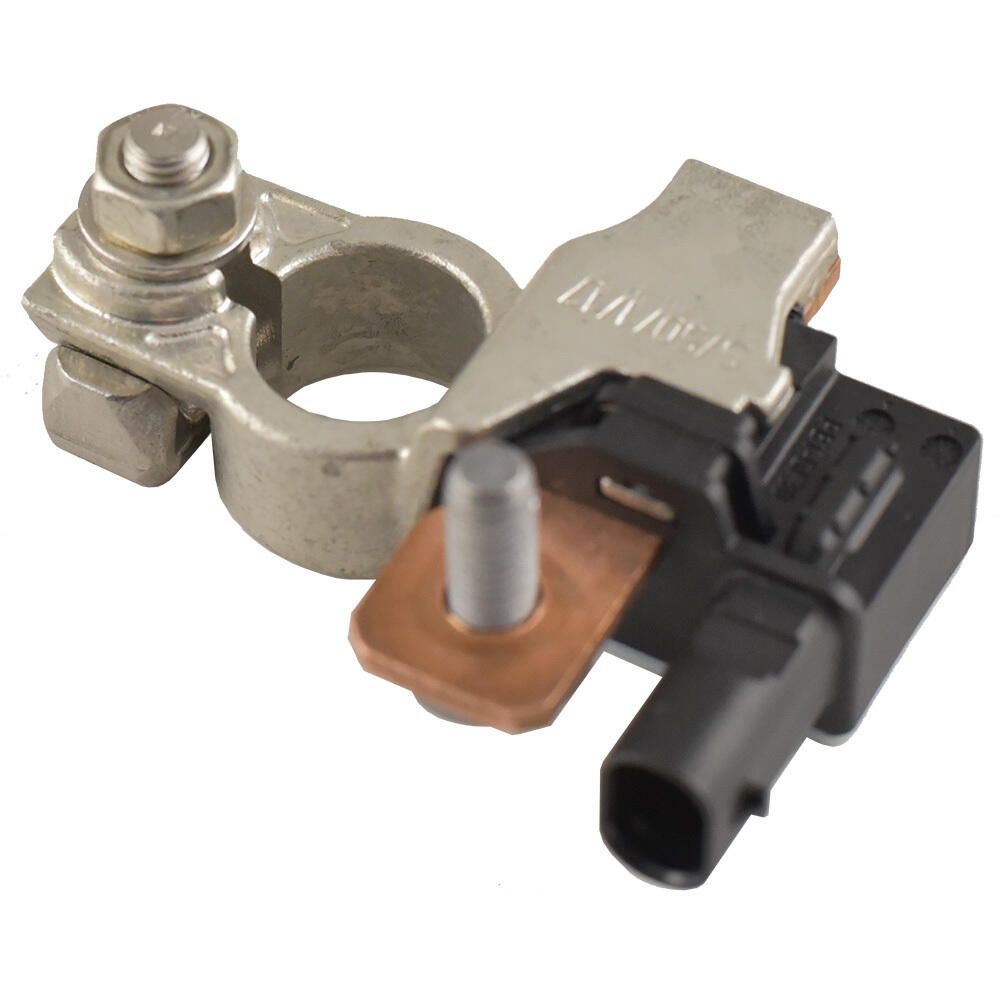

Image of : Veratron Intelligent Battery Sensor - B00084201 Veratron Intelligent Battery Sensor - B00084201 Item # 967670

Description

After the simple electrical and mechanical integration, the sensor accurately measures the battery voltage, current, and temperature parameters and internally calculates the State Of Charge, State Of Health, and Time Remaining accordingly.

Specifications:

  • Operating voltage: 6 - 16.5V
  • Operating current (permanent): ± 155A
  • Max current: ± 1500A (500 ms)
  • Power consumption: ≤ 15 mA (normal mode), ≤ 120 μA (sleep mode)
  • Max battery capacity: 249 Ah
  • Operating temperature: -40° C - 155° C

Part Numbers for Veratron Intelligent Battery Sensor - B00084201
