Victron Energy

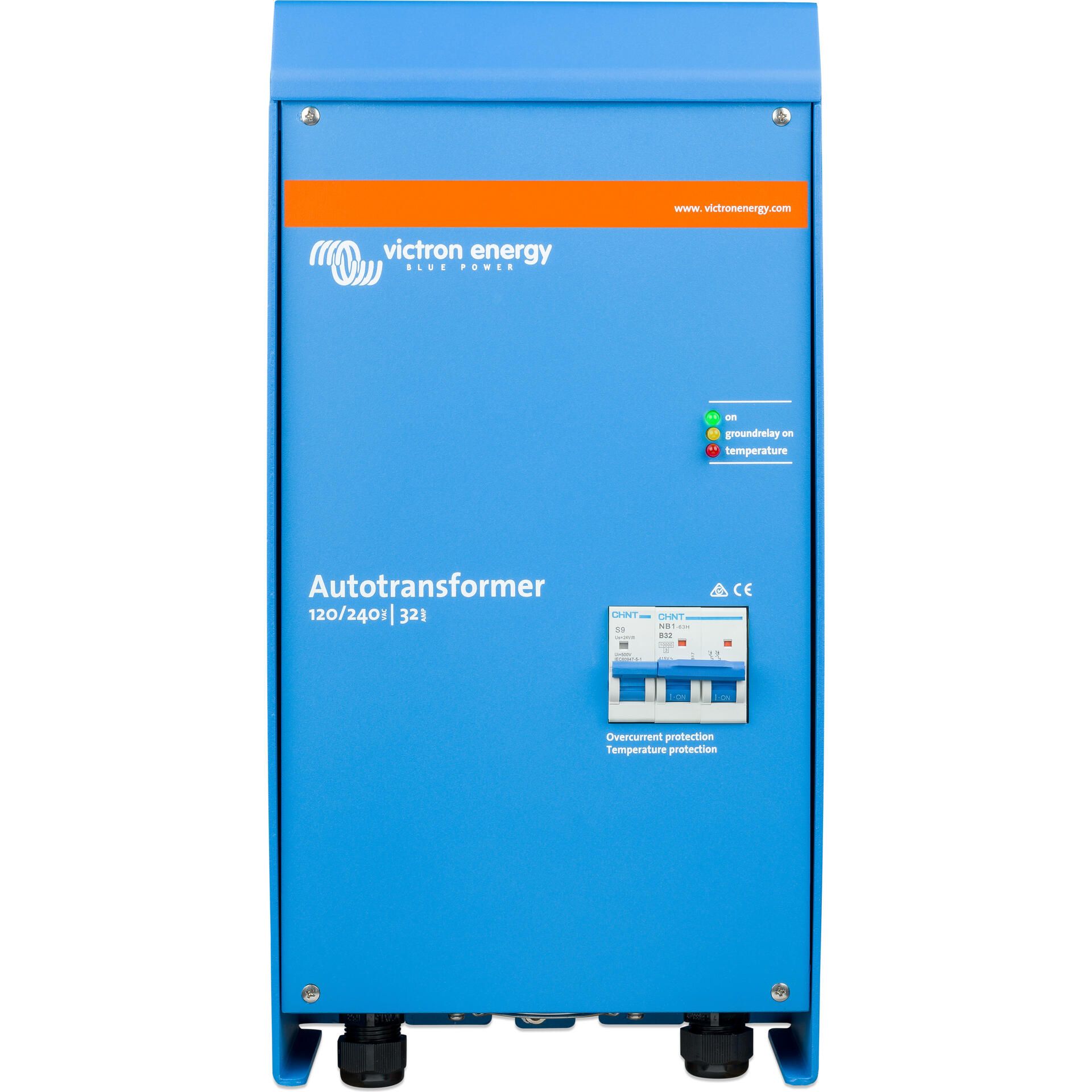

Victron Energy Split Phase Autotransformer
Item: #1390769 | Part Number: Not Selected$661.10 - $718.64
Description
The Victron Energy Split Phase Autotransformer provides a simple, reliable way to create a balanced 120/240V split phase supply from a single 120V inverter output. Ideal for step-up, step-down, and output balancing applications, it offers clean power delivery with built-in temperature protection and a ground relay for Multi or Quattro inverter/chargers.
Victron Energy Split Phase Autotransformer Item # 1390769
Description
An Autotransformer can be used for step up, step down and split phase output balancing purposes. While the step up and step down functions are fairly straightforward, split phase output balancing may require some more attention.
Features:
- Temperature protected in case of overheating
- Ground relay for use with Multi or Quattro Inverter/Chargers included
- Alternative to stacking two 120V inverters to provide a 120/240V split phase supply is a 240V inverter with an additional Autotransformer
Specifications:
- Input/Output Voltage: 120/240V
- Input Circuit Breaker: 32A two pole OR 100A two pole
- Frequency: 50/60Hz
- Maximum 240V Feed-Through Current: 32A OR 100A
- Neutral Current:
- 30 Min: 32A (3800 VA)
- Continuous: 28A @ 40ºC/100ºF
- Transformer Type: Toroidal
- Enclosure: Aluminium
- Input Circuit Breaker: Yes
- Protection Category: IP21
- Safety: EN 60076
- Weight:
- 32A: 12.5 kg
- 100A: 13.5 kg
- Dimensions (H x W x D): 425 x 214 x 110 mm
