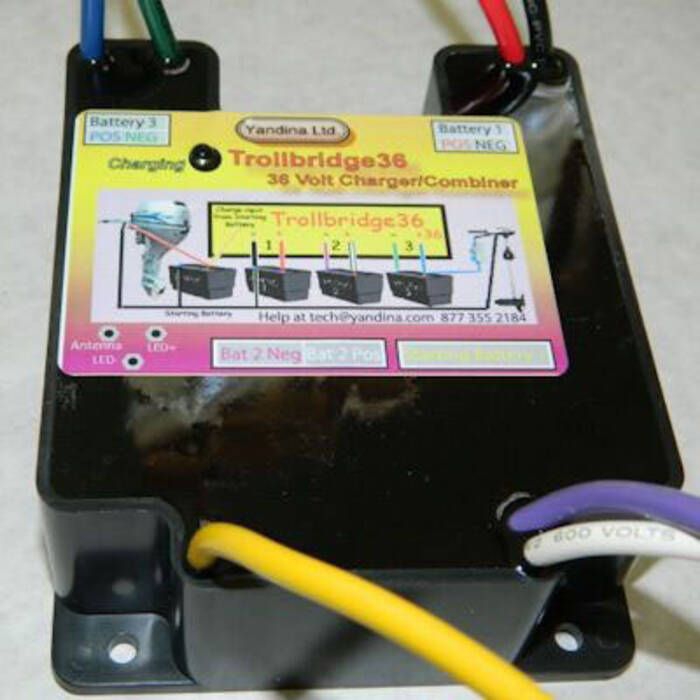

SmartShore Marine Trollbridge36 Battery Combiner - TB36

Formerly known as Yandina, the SmartShore Marine Trollbridge36® Combiner allows you to charge your 36V trolling motor battery from the 12V alternator on your main engine or a trailer hook-up. It works by automatically putting (3) 12V batteries in series when you need to run the trolling motor and in parallel for charging.

Features:

• Fully automatic, no switches or connectors to change
• Compatible with (3) or (4) battery systems
• In a 3 battery system, the bottom battery can be used as a house and/or starting battery
• A single output 12V charger will charge all batteries
• Can be conveniently located with the batteries
• Can be used on alternators with internal or external regulators
• LED indicates when the trolling batteries are charging
• Connection provided for optional remote LED
• Charging is done at 12V so your motor never sees charging voltages
• 100% efficient when trolling for longer run times
• 97% efficient when charging - faster charge and no wasted power with no heat sink or cooling fan required
• Waterproof - rated IP68 protected from long term immersion
• Ignition rated for explosive atmospheres
• No voltage drop so batteries reach full charge
• No modification to alternator or 12V engine wiring
• Simple 6 wire connection to three batteries and a charging input line
• Comes with all cables for basic hookup
• Uses no current when not charging - no on/off switch needed
• Uses only 1/2 amp when charging
• No diodes to burn out if accidentally shorted
• Withstands high ambient temperature for engine compartment mounting
• Remote radio link push button to enable running both motors at the same time
Works automatically with 97% of trolling motors and manually with 100%

Specifications:

• Model No. TB36
• Voltage: 12V DC
• Rated for 12V alternators up to 100 Amps
• Rated for 36V trolling motors up to 85 Amps
• Waterproof: IP68
• Max Operating Temperature: 175° F (80° C)
• Dimensions (L x W x H): 4" x 5" x 2"
