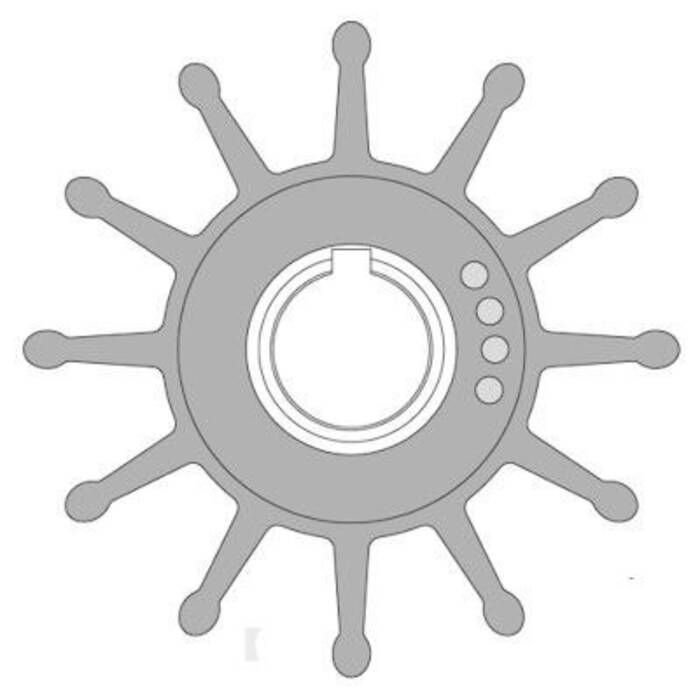

Johnson Replacement Impeller Kit - 09-704BT-1

Applications: Cummins 6B 300Hp B Series; Cummins C Series; CAT 3208; CAT 3116; CAT 3126; Deere 6076

Specifications:

• Number of Blades: 12
• Shaft Drive: Keyed
• Material: MC97 (Use MC97 and Neoprene for Cooling Systems)
• Outside Diameter: 84.1 mm / 3.31"
• Inside Diameter: N/A
• Width: 73.4 mm / 2.89"

Cross Reference:

• Jabsco Part Number: 18958-0001

A worn or damaged impeller can cause system failure or engine breakdown. SPX's Johnson Pump brand impellers are developed and manufactured for maximum flow and long life. With a genuine spare impeller you can also be sure that you are getting the quality required by engine manufacturers and professionals

The impeller is a very important security device. Its task is to pump the water through the cooling system of the engine. But remember that the impeller should be replaced every year. And always make sure you get a SPX Johnson Pump original impeller. Then you'll know that it matches your pump exactly

SPX / Johnson Impeller Kit Guide (2.14 MB)

SPX / Johnson (2.14 MB)

Impeller Identification Guide (1.82 MB)
